8353G51
ASCO
1. Product name: 8353G51 2.5" ASCO Red Hat Series Aluminium Main Pulse Valve
2. Features
• Specially designed for reverse jet-type dust collector systems.
• High flow Cv’s to 140 for effective bag cleaning.
• High cycle life.
• Fast opening/closing.
3. Drawing
4. Solenoid Enclosures
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to catalog number.) See Optional Features Section for other available options. Consult your local ASCO office for details on accessories.
5. Nominal Temperature Ranges
Ambient: AC constructions: 0˚F to 185˚F (-18˚C to 85˚C). 150˚F (66˚C) maximum for valves with HYT diaphragm. Consult local sales office for DC constructions.
Fluids: 0˚F to 185˚F (-18˚C to 85˚C), except as noted. For temperatures to 300˚F (149˚C), specify FPM, suffix “V” (except where noted). Refer to Engineering Section for details.
6. Construction
| Valve Parts in Contact with Fluids | ||||
| Body | Aluminum | |||
| Seals | NBR | |||
| Diaphragm | NBR, HYT, or CR, as noted | |||
| Discs | NBR or PA, as noted | |||

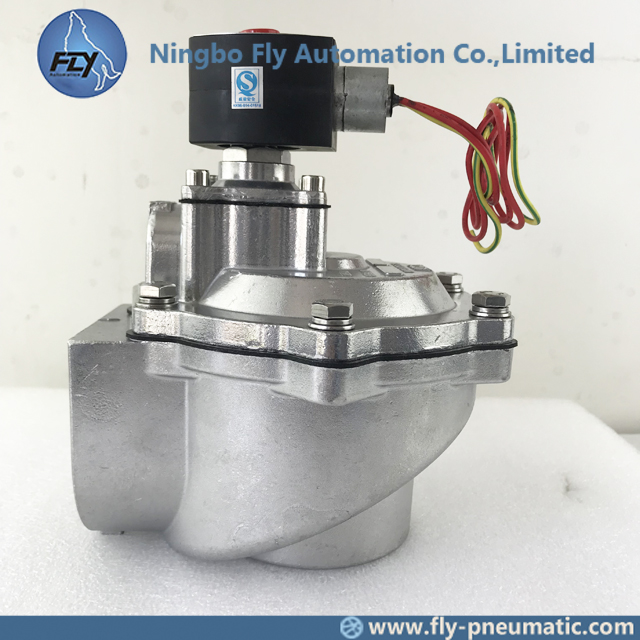

7. Product show
