8353G61
ASCO
1. Product name: 8353G61 ASCO 1.5 inches Red Hat Series Aluminium Main Pulse Solenoid Valve
2. Features
• Specially designed for reverse jet-type dust collector systems.
• High flow Cv’s to 140 for effective bag cleaning.
• High cycle life.
• Fast opening/closing.
3. Construction
| Valve Parts in Contact with Fluids | ||||
| Body | Aluminum | |||
| Seals | NBR | |||
| Diaphragm | NBR, HYT, or CR, as noted | |||
| Discs | NBR or PA, as noted | |||
4. Nominal Temperature Ranges
Ambient: AC constructions: 0˚F to 185˚F (-18˚C to 85˚C). 150˚F (66˚C) maximum for valves with HYT diaphragm. Consult local sales office for DC constructions.
Fluids: 0˚F to 185˚F (-18˚C to 85˚C), except as noted. For temperatures to 300˚F (149˚C), specify FPM, suffix “V” (except where noted). Refer to Engineering Section for details.
5. Solenoid Enclosures
Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.
Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to catalog number.) See Optional Features Section for other available options. Consult your local ASCO office for details on accessories.
6. Drawing

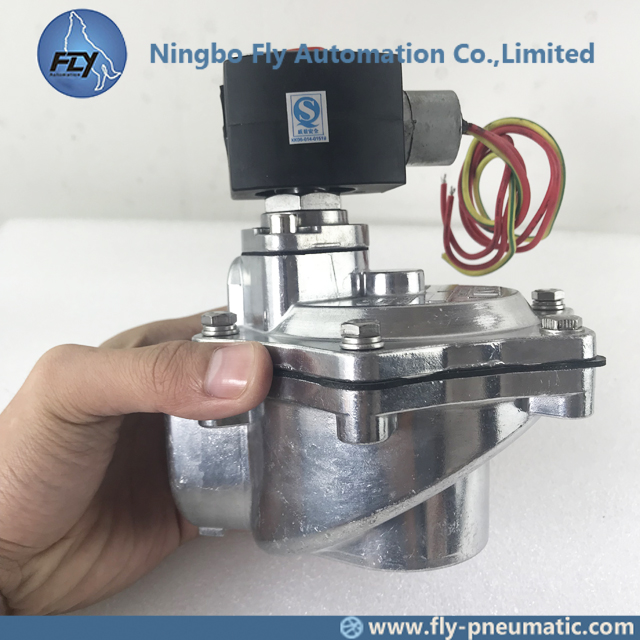

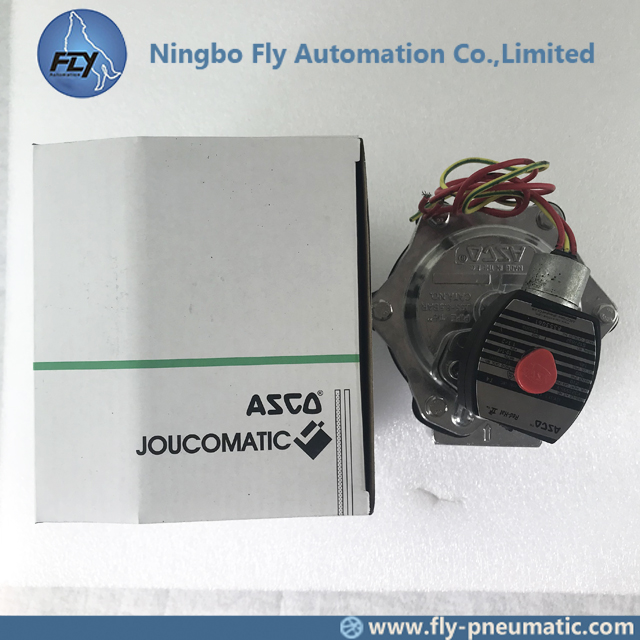

7.Product show
