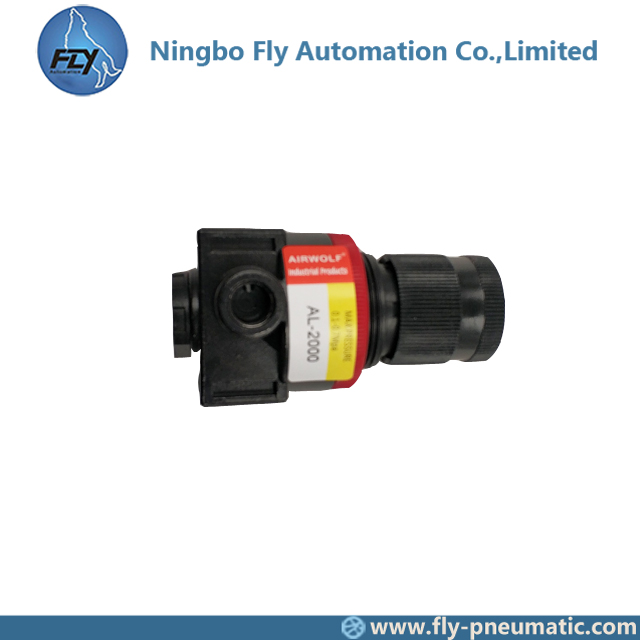

AL2000 Airtac precision BR series Pneumatic Components group Air source 1/4" Aluminum Lubricator

1. Fluid: Air
2. Pressure range: 0.05~1.0MPa(7~145Psi)
3. Temperature range: ﹣5~70℃(unfreeze)

Quantity:
  • AL2000
  • Airtac

1. Product name: AL2000 Airtac precision BR series Pneumatic Components group Air source 1/4" Aluminum Lubricator


2. Product feature

1. The structure is delicate and compact.
2. The quantity of oil dripping can be directly observed through transparent inspection sheet.
3. BL has high-strength plastic shields, which is more safe and reliable to use.4. The pressure loss and the flow of miststart is low.


3. Drawing

AL series


4. Other products

Filter Regulator Lubricator Filter Regulator FR.L unit F.R.L unit
AF1500 AR1500 AL1500 AFR1500 AFC1500 AC1500
AF2000 AR2000 AL2000 AFR2000 AFC2000 AC2000
BF2000 BR2000 BL2000 BFR2000 BFC2000 BC2000
BF3000 BR3000 BL3000 BFR3000 BFC3000 BC3000
BF4000 BR4000 BL4000 BFR4000 BFC4000 BC4000


5. Order code

Order code


6. Specification

Model AL1500 AL2000 BL2000 BL3000 BL4000
Fluid Air
Port size 1/8" 1/4" 1/4" 3/8" 1/2"
Pressure range 0.05~1.0MPa(7~145Psi)
Proof pressure 1.5MPa(215Psi)
Temperature range 5~70(unfreeze)
Capacity of oil bowl 25CC 90CC
Recommend lubricant ISO VG 32 or equivalent
Weight 170g 250g


7. Product show

3


8. Inner structure

Inner structure

No. Item Material No. Item Material
1 Drip pipe PC 13 Ball Stainless steel
2 Dripper O-ring NBR 14 Lubricator fixed plate SPCC
3 Oil adjusting dial POM 15 Oil bowl O-ring NBR
4 Adjusting ring NBR 16 Body Aluminum alloy
5 Lubricator seat POM 17 Oil filling nut O-ring NBR
6 Partition PU 18 Oil filling plug Steel
7 Lubricator kit gasket NBR 19 Needle spring Stainless steel
8 Adjustor HDPE 20 Injector pin Bronze
9 Return spring Stainless steel 21 Check-dome PC
10 Oil bowl PC 22 Bowl guard switch POM
11 Sunk tube PU 23 Bowl guard PA6
12 Lubricator kit POM
