1. Product name: AR2000 Airtac Air source treatment 1/4" AR series precision control unit Aluminum alloy Regulator

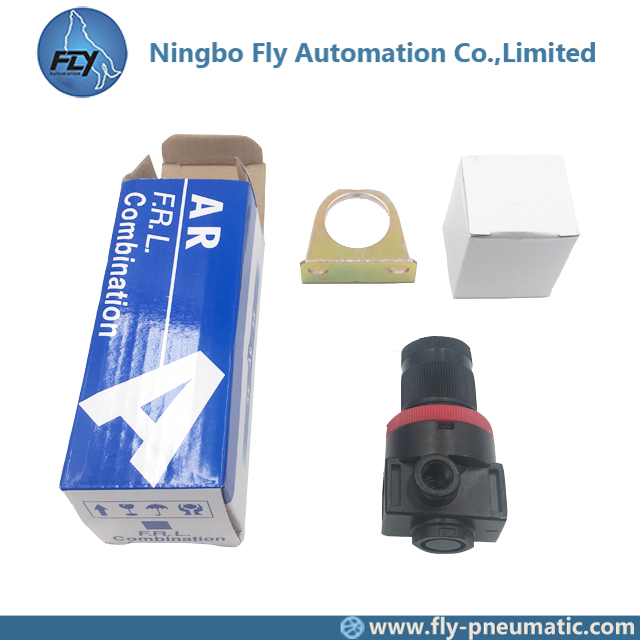

2. Product show
3. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
4. Order code
5. Specification
| Model | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Pressure range | 0.05~0.9MPa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣20~70℃ | ||||
| Weight | 200g | 230g | |||
6. Inner structure
| NO. | Item | Material |
| 1 | Push button | POM |
| 2 | Adjusting button | POM |
| 3 | Adjusting nut | Steel |
| 4 | Adjusting pillar | Steel |
| 5 | Adjust spring | SWC |
| 6 | Fixed ring | POM |
| 7 | Adjusting seat | POM |
| 8 | Body | Aluminum alloy |
| 9 | Diaphragm | SUS304 & rubber |
| 10 | Needle O-ring | NBR |
| 11 | Balance needle | POM |
| 12 | Needle gasket | Aluminum alloy & rubber |
| 13 | Cap O-ring | NBR |
| 14 | Return spring | Stainless steel |
| 15 | Regulator cap | POM |
7. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).
8. Drawing
9. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
