1. Product name: BC2000 Airtac Pneumatic Aluminum alloy Components BC series 1/4" precision group air Filter regulator lubricator
2. Drawing

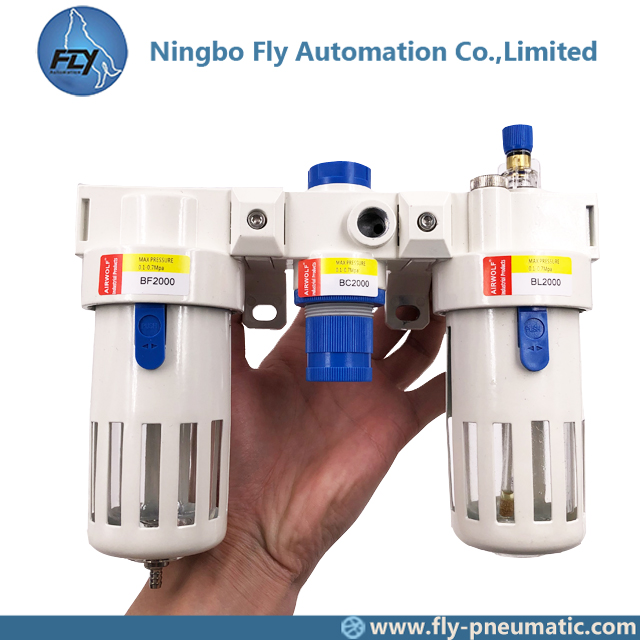

3. Product show
4. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
5. Specification
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Fluid | Air | |||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | |
| Filtering grade | 40μm or 5 μm | |||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | |||||
| Max. pressure | 1.0MPa(145Psi) | |||||
| Proof pressure | 1.5MPa(215Psi) | |||||
| Temperature range | ﹣5~70℃(unfreeze) | |||||
| Capacity of drain bowl | 15CC | 60CC | ||||
| Capacity of oil bowl | 25CC | 90CC | ||||
| Recommend lubricant | ISO VG 32 or equivalent | |||||
| Weight | 700g | 900g | ||||
| Constitute | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
6. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high.4.The quantity of oil dripping can be directly observed through transparent check-dome.
5. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).
7. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
8. Inner structure
| No. | Item | No. | Item |
| 1 | AF, BF Series filter | 5 | A, B Series fix kit |
| 2 | A, B Series gasket | 6 | Screw |
| 3 | A, B Series bracket | 7 | AL, BL Series lubricator |
| 4 | AR, BR Series regulator |
9. Order code
