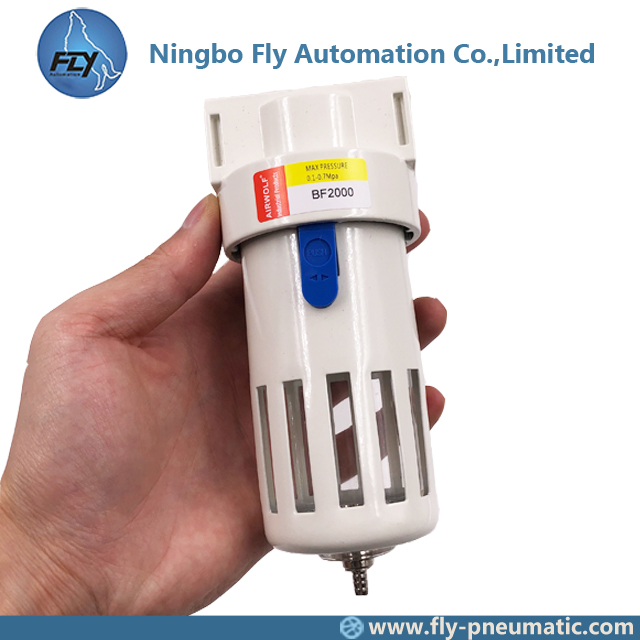

1. Product name: BF2000 Airtac treatment group aluminum alloy 1/4" Pneumatic Components Air source Filter
2. Drawing
3. Product feature
AF Series
1. The structure is delicate and compact.
2. The pressure loss is low and the efficiency of water separating is high;
3. The filter precision includes 5 u m and 40 u m(optional);
BF Series
1. The pressure loss is low and the efficiency of water separating is high.
2. The bowl has high-strength plastic shields outside ,which is more safe and reliable to use.3. The filter precision includes 5 u m and 40 u m(optional).
4. Inner structure
| No. | Item | Material | No. | Item | Material | |
| 1 | Drain bowl O-ring | NBR | 8 | Drain pillar | POM | |
| 2 | Body | Aluminum alloy | 9 | Return spring | Stainless steel | |
| 3 | Filter element | 5μm | Makrolon fiber | 10 | Gasket | POM |
| 40μm | Agglomerated by bronze grain | 11 | Air guider | POM | ||
| 4 | Umbrella baffle | POM | 12 | Bowl guard switch | POM | |
| 5 | Drain bowl | PC | 13 | Bowl guard | PA6 | |
| 6 | Drain kit | POM | 14 | Drain seat O-ring | NBR | |
| 7 | Drain seat | POM | 15 | Clip | Spring steel | |
5. Specification
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~1.0MPa(20~145Psi) Manual drain: 0~1.0Mpa(0~145Psi) | ||||
| Prof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | 5~70℃(unfreeze) | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Weight | 140g | 330g | |||
6. Order code
7. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
8. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
9. Product show
