1. Product name: BFC2000 Airtac Preparation control unit 1/4" BFC series Air source precision Regulator filter
2. Specification
| Model | AFC1500 | AFC2000 | BFC2000 | BFC3000 | BFC4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Capacity of oil bowl | 25CC | 90CC | |||
| Recommend lubricant | ISO VG 32 or equivalent | ||||
| Weight | 500g | 700g | |||
| Constitute | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |
3. Drawing

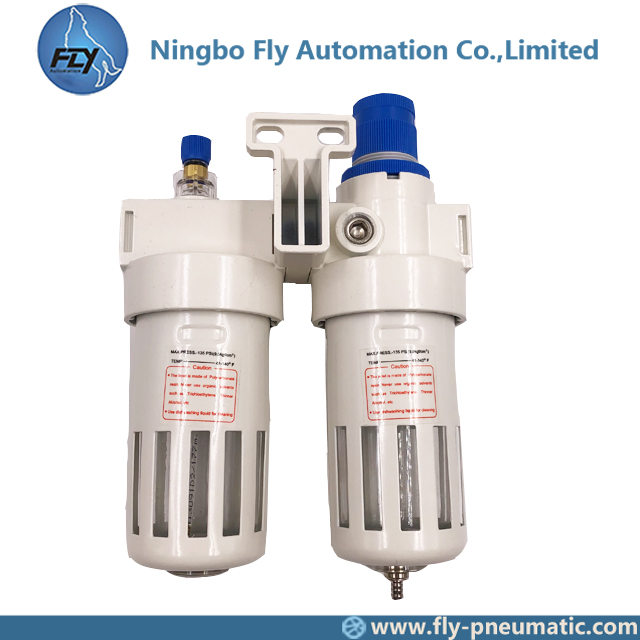

4. Product show
5. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
6. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
7. Order code
8. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high. .
4. The quantity of oil dripping can be directly observed through transparent check dome.
5. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).
9. Inner structure
| No. | Item |
| 1 | AFR, BFR Series filter & regulator |
| 2 | A, B Series bracket |
| 3 | A, B Series gasket |
| 4 | A, B Series fixed kit |
| 5 | Screw |
| 6 | AL, BL Series lubricator |
