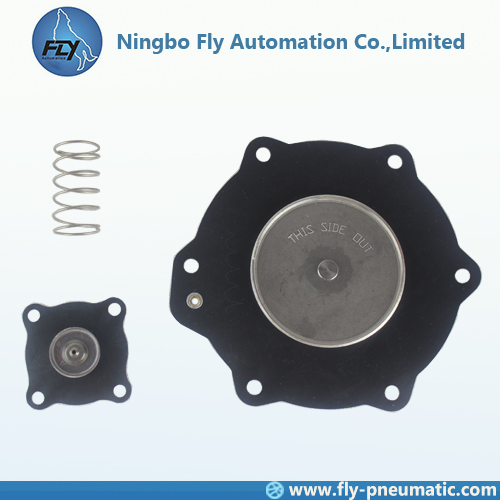

C113685 C113686 ASCO 353 serial Pulse valve SCG353A050 SCG353A051 Diaphragm repair kits

1. Material: Nitrile/Buna or Viton
2. Port size: 2" or 2 1/2"
3. Suitable for: ASCO SCG353A050, SCG353A051, G353A048, G353A049

Quantity:
  • C1138685 C113686
  • ASCO
  • 0101
  • Aluminium
  • 2/2.5 inch
  • 0.1~0.8MPa
  • -10~70℃
  • 1.5 million times or 2 years
1. Product Name: C113685 C113686 ASCO 353 serial Pulse valve SCG353A050 SCG353A051 Diaphragm repair kits

2. Order code: C113685, C113686

3. GENERAL
Differential pressure (PS): 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range: -20 to +75 ℃ or 180℃
Material: Buna or Viton
Spanlife: 2 years or 1.5 million

4. ASCO diaphragms
 Ordering Code Fitted Valve Code Valve port size Material
C113443 G353A041, G353042 3/4", 1" TPU / NBR
C113444 SCG353A043, SCG353A044 3/4", 1" TPU / NBR
C113825 G353A045 1 1/2" NBR / BUNA
C113826 G353A046 1 1/2" NBR / BUNA
C113827 SCG353A047 1 1/2" NBR / BUNA
C113685  SCG353A050, SCG353A051
G353A048, G353A049
2" , 2 1/2" NBR / BUNA
C113686
C113928 SCEX353.060 3" NBR / BUNA
NOTE: THE VITON MATERIAL IS ALSO AVAILABLE

5. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

6. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

7. Serves Time
0:00 - 23:59
From Monday to Sunday
