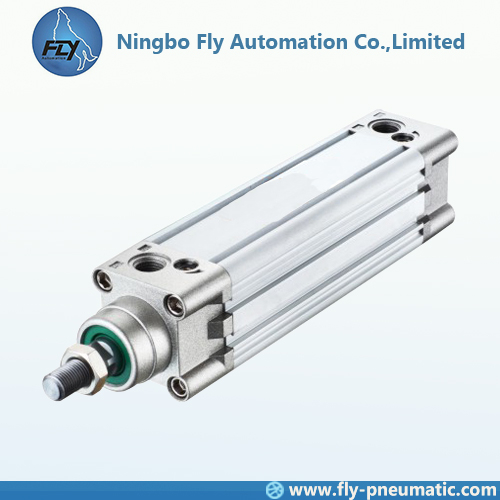

Festo ISO6431 Standard DNC series Pneumatic cylinder DNC-50x100-PPV-A Double action

Festo DNC series cylinders can be applied to different working environment, usually the the working pressure range from 0.1 to 1.0MPa, working temperature from -5℃ to +70℃.

Quantity:
  • DNC-50x100-PPV-A
  • Festo
  • 0048
  • Double action
  • Filtered air
  • 1.5MPa
  • 1MPa
  • 0.1MPa
  • Air buffer(standard)
  • -5~+70℃
  • 50~800mm/s
1: Product name: Festo ISO6431 Standard DNC series Pneumatic cylinder DNC-50x100-PPV-A Double action

2: Ordering code
ordering code
3: Specification

Bore (mm) 32 40 50 63 80 100
Motion Pattern Double Action
Working Medium Fitered Air
Compression Pressure 1.5 MPa
Max. Operating Press 1.0 Mpa
Min. Operating Press 0.1 Mpa
Buffer Air Buffer (Standard)
Ambient Temp 5~60
Operating Speed 50~500 mm/s
Operating life Not less than 4000 Km
Lubricate Not Necessary
Joint Pipe Bore 1/8" 1/4" 3/8" 1/2"
4: Instruction
1. Bore size 32, 40, 50, 63, 80, 100, and many strokes are available, 32, 40, 50, 75, 80, 100, 125,150, 160, 175,
200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000.
2. If you have a need for special, you can contact freely. Of course, different types means different prices. Whatever you want we can customize it.
5: structure
结构
Bore AM B D2 D5 D7 E EE(G) J3 J4 KK
32 22 30 12 32.5 M6 45  1/8 6 5.2 M10X1.25
40 24 35 16 38 M6 54  1/4 8 6 M12X1.25
50 32 40 20 46.5 M8 64  1/4 10 8.5 M16X1.5
63 32 45 20 56.5 M8 75  3/8 12.4 10 M16X1.5
80 40 45 25 72 M10 93  3/8 12.5 8 M20X1.5
100 40 55 25 89 M10 110  1/2 11.8 10 M20X1.5
L2 L3 L4 L5 L6 L7 L8 SW1 SW2 VD WH ZB
41.6 62.8 4 25.1 16 3.3 10 10 6 18 26 120
44 77 4 29.6 16 3.6 10.5 13 6 21.5 30 135
51 78 4 29.6 17 5.1 11.5 17 8 28 37 143
54 87 4 35.6 17 6.6 15 17 8 28.5 37 158
62.4 95.2 4 35.9 17 10.5 15.7 22 10 34.7 46 174
69.8 100.4 4 38.8 17 8 19.2 22 10 38.2 51 189
6: Competitive Advantage

Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.

7: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

8: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.

9. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
