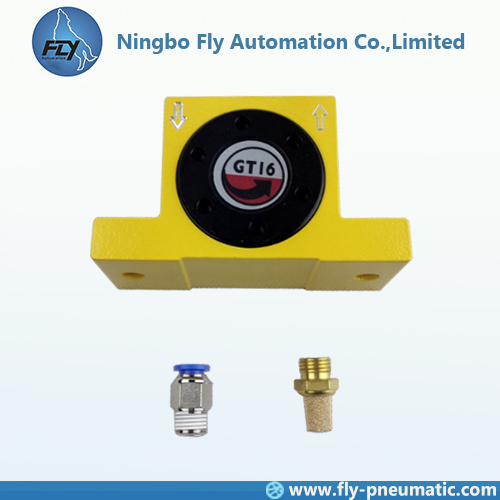

Findeva GT13 GT16 Pneumatic vibrator Rotary vibrator GT16S Pneumatic Air Turbine Vibrator

We have GT13 GT16 and GT13S GT16S, GT13S GT16S are reinforced type

Quantity:
  • GT13 GT16
  • Findeva
  • 0115
Findeva GT13 GT16 Pneumatic vibrator Rotary vibrator GT16S Pneumatic Air Turbine Vibrator

1. MODEL GT
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 120 C
5. Force 135 N to 12000 N
6. No Lubrication Required

2. Structure and material
Structure and material

1. Extruded Aluminium Alloy Body
2. Hard Coated Aluminium Turbine Wheel
3/4. High Density Mass Positive Movement
5-7. Cavities Giving Negative Moment
8. Air Inlet
9. Air Exhaust
10. Base Mounting Holes
11. Special Pre-Lubricated Matched Sealed Bearings
Hard Coated Aluminium Endplates
12. With Left Hand Thread
13. With Right Hand Thread

3. Dimenasion

dimension

Type A B C D E F G/H Weight
mm mm mm mm mm mm BSP KG
GT-4 40 28 70 56 10 6 G1/8" 0.2
GT-6 40 28 70 56 10 6 G1/8" 0.2
GT-6-S 40 28 70 56 10 6 G1/8" 0.2
GT-8 50 33 86 68 12 7 G1/8" 0.3
GT-10 50 33 86 68 12 7 G1/8" 0.3
GT-10-S 50 33 86 68 12 7 G1/8" 0.3
GT-13 65 42 113 90 16 9 G1/4" 0.7
GT-16 65 42 113 90 16 9 G1/4" 0.7
GT-16-S 65 42 113 90 16 9 G1/4" 0.7
GT-20 80 56 128 104 16 9 G1/4" 1.2
GT-25 80 56 128 104 16 9 G1/4" 1.2
GT-25-S 80 56 128 104 16 9 G1/4" 1.2
GT-30 100 73 160 130 20 11 G3/8" 2.2
GT-36 100 73 160 130 20 11 G3/8" 2.4
GT-36-S 100 73 160 130 20 11 G3/8" 2.6
GT-40 120 83 194 152 24 17 G3/8" 3.7
GT-48 120 83 194 152 24 17 G3/8" 3.9
GT-48-S 120 83 194 152 24 17 G3/8" 4.3


4. Quality Standards
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
