GT48 GT48S
Findeva

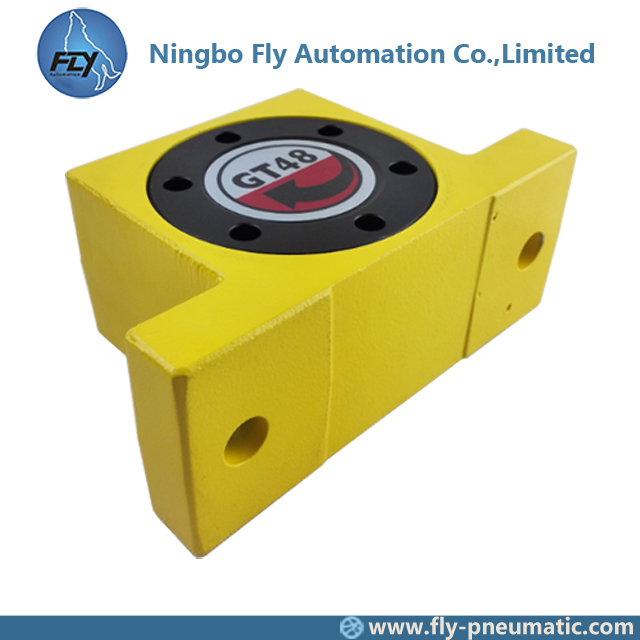

1. Product name: GT48 GT48S Findeva GT Series Air Roller Vibrator Pneumatic Oscillator 3/8" BSP
3. Dimenasion
| Type | A | B | C | D | E | F | G/H | Weight |
| mm | mm | mm | mm | mm | mm | BSP | KG | |
| GT-4 | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-6 | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-6-S | 40 | 28 | 70 | 56 | 10 | 6 | G1/8" | 0.2 |
| GT-8 | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-10 | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-10-S | 50 | 33 | 86 | 68 | 12 | 7 | G1/8" | 0.3 |
| GT-13 | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-16 | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-16-S | 65 | 42 | 113 | 90 | 16 | 9 | G1/4" | 0.7 |
| GT-20 | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-25 | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-25-S | 80 | 56 | 128 | 104 | 16 | 9 | G1/4" | 1.2 |
| GT-30 | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.2 |
| GT-36 | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.4 |
| GT-36-S | 100 | 73 | 160 | 130 | 20 | 11 | G3/8" | 2.6 |
| GT-40 | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 3.7 |
| GT-48 | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 3.9 |
| GT-48-S | 120 | 83 | 194 | 152 | 24 | 17 | G3/8" | 4.3 |
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 120 C
5. Force 135 N to 12000 N
6. No Lubrication Required
0:00 - 23:59
From Monday to Sunday
6. Structure and material
1. Extruded Aluminium Alloy Body
2. Hard Coated Aluminium Turbine Wheel
3/4. High Density Mass Positive Movement
5-7. Cavities Giving Negative Moment
8. Air Inlet
9. Air Exhaust
10. Base Mounting Holes
11. Special Pre-Lubricated Matched Sealed Bearings
Hard Coated Aluminium Endplates
12. With Left Hand Thread
13. With Right Hand Thread
