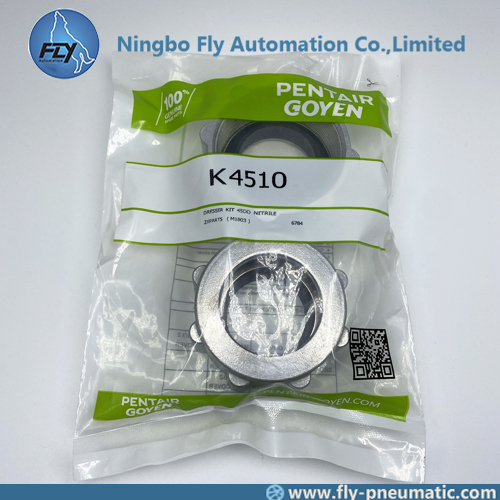

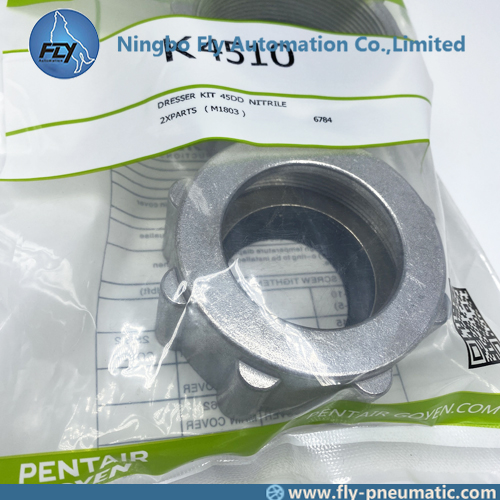

Goyen K4510 Pulse valve CA45DD RCA45DD Dresser Seal Kit 1 dresser seal, 1 dresser nut, 1 seal retainer

Dresser seal: 304SS
Dresser nut: Aluminium
Seal retainer: Nitrile or Viton

Quantity:
  • K4510
  • Goyen

1. Product Name: Goyen K4510 Pulse valve CA45DD RCA45DD Dresser Seal Kit 1 dresser seal, 1 dresser nut, 1 seal retainer


2. Code: K4510

3. Description

High performance diaphragm valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.



4. Maintenance
Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

5. Operation
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater

6. Installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.

7. Approvals
Integrally piloted valves meet the requirements of:
1. C-Tick
2. EMC (89/336/CE)
3. ATEX II 3 G & D (94/9/CE) (when fitted with QR or QF type solenoids)

8. Goyen diaphragm
Model Nitrile Viton Low Temperature
-60℃
Includes
CA/RCA20T K2000 K2007 NA Diaphragm kits include main and secondary diaphragm (where required) and all springs. These kits are for discontinued valves
CA/RCA25T K2501 K2503 K2504
CA/RCA35T K3500 K3501 K3502
CA/RCA40T K4000 K4007 NA
CA/RCA45T K4502 K4503 K4522
CA/RCA50/62T K5004 K5000 NA
CA/RCA76T K7600 K7601 NA
Pilot repair kit K0380 NA o-ring, armature assembly, armature spring, ferrule
Pilot repair kit K0580
