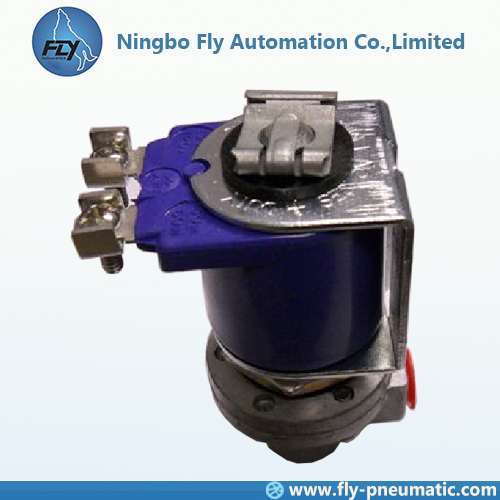

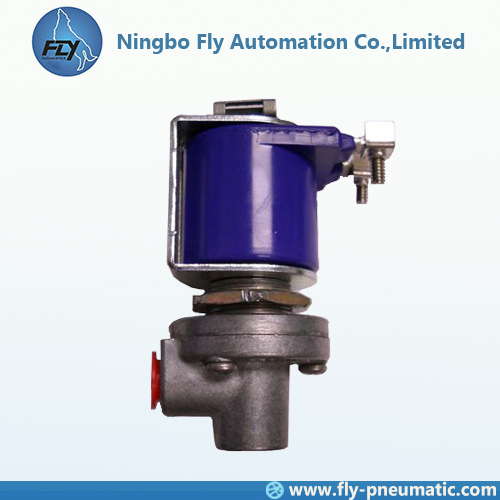

Goyen RCA3D2 Remote Solenoid pilot valve control the dust collector diaphragm valve

1. RCA3D2 Goyen pilot solenoid valve
2. Port size: 1/8"
3. Coil code: K330
4. Voltage: DC 24V, AC 110V, AC 220V

Quantity:
  • RCA3D2
  • Goyen
  • 0054
  • Goyen pulse jet valve
  • 1/8"
  • DC 24V, AC 110V, AC 220V
1. Product Name: Goyen RCA-3D2 Remote Solenoid pilot valve control the dust collector diaphragm valve

2.  Suitable for
All Goyen dust collector diaphragm valves.

Installation
Prepare pilot mounting hole in panel to Φ19.3/19.4(Φ0.760"). Panel thickness must exceed 1.5mm(0.062"). Ensure o-ring is in place before tightening locknut. Preferably, install pilot valves with solenoid on top. For reliable operaation, ensure voltage is within -10% and +15% of rated solenoid voltages. Replace components within 1 minlion cycles.

3. Construction
Body: Aluminium (diecast)
Ferrule: 304 SS
Armature: 430FR SS
Seals: Nitrile
Locknut: Mild steel zinc passivated
Screws: 302 SS
Clip: Mild steel (plated)

4. Operation
Recommended on time range: 50-500ms
Recommended time between pulse: 1 minutes or greater

5. Approvals
1. C-Tick
2. EMC (89/336/CE)

6. Spare parts
K0380 Replacement seal, armature, spring and ferrule kit.
K330 solenoid coil

7. Instruction
dimension
8. Product performance

Flow Maximum working pressure Minimum working pressure Min.
temperature
Max.
temperature
Fluid media
0.32 Cv 860 KPa 0 KPa -40 ℃ 82 ℃ Air or insert gas
0.27Kv 125 psi 0 psi -40 ℉ 180 ℉

9. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

10. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

11. Serves Time
0:00 - 23:59
From Monday to Sunday
