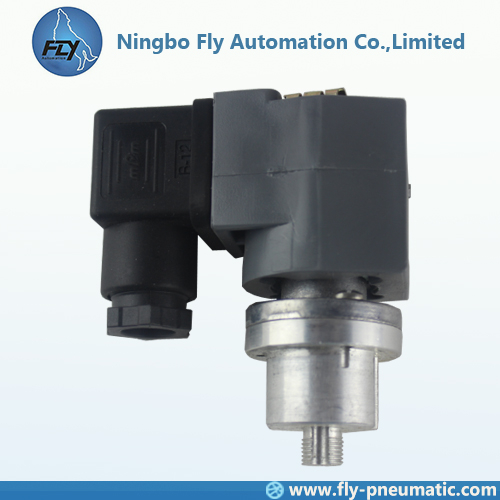

1. Product Name: Goyen RCA3DM RCA3DS 4 Series Pilot Valves for Integral Pilot (CA) Applications
2. Order code
3. APPLICATIONS The RCA3DM is a pilot valve with an integral silencer and dust shroud which mounts directly (screw-in) to the 4 series valve cover.
RCA3DM and RCA3PV are suitable piloting options for all 4 Series valves and the RCA35T diaphragm valve.
4. COIL CONSTRUCTION
Encapsulation: PA-66
C-Frame: Mild steel, zinc passivated
Bobbin: PA-66
Insulation class: B/130°C
IP Rating: IP65
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)
5. OPERATION
Recommended on time range: 50 to 500 ms
Recommended time between pulses: 1 minute or greater
6. COIL CERTIFICATION AND
CONFORMITIES
1. C-Tick
2. EMC (89/336/CE)
3. CE – EMC (2004/108/EC) and LV (2006/95/EC)
4. CSA
7. SPARE PARTS
K0380 – Kit includes Nitrile replacement seal, armature, spring and ferrule.
K0384 – Kit includes Viton replacement seal, armature, spring and ferrule.
8. STRUCTURE AND DIMENSION
| Flow | Maximum working pressure | Minimum working pressure | Min. temperature | Max. temperature | Fluid media |
| Nitrile | Viton | Nitrile | Viton |
| 0.32Cv | 860kPa | 0kPa | -40℃ | -29℃ | 82℃ | 232℃ | Air or
inert gas |
| 0.27Kv | 125psi | 0Psi | -40℉ | -20℉ | 180℉ | 450℉ |
10. ORDER CODE AND ELECTRICAL CHARACTERISTICS | ELECTRICAL CHARACTERISTICS |
| DIN Socket Connector | PG9 Connection (Cable Entry) |
| DIN Socket Specification | EN175301 – 803 (previously DIN 43650A) / A/ISO 4400 |
| DIN Socket Optional | 94/9/CE ATEX ii 3GD T6 |
| Isolation Class DIN Socket | VDE 0110 – 1/89 |
| DIN Socket Protection | IP65 EN60529 |
