JKHX8320G202MO 8320G202 ASCO 8320 series 1/4 inch Stainless Steel Pilot Operated High Flow Solenoid Valve

1. Port size: 1/4 inch
2. Material: Stainless Steel Body

Quantity:
  • JKHX8320G202MO 8320G202
  • ASCO

1. Product Name: JKHX8320G202MO 8320G202 ASCO 8320 series 1/4 inch Stainless Steel Pilot Operated High Flow Solenoid Valve

2. Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNL will be normal ways, If you require use of a courier, we can do it.

4. Also we can send by your delivery acount if you want.


3. Drawing

Drawing

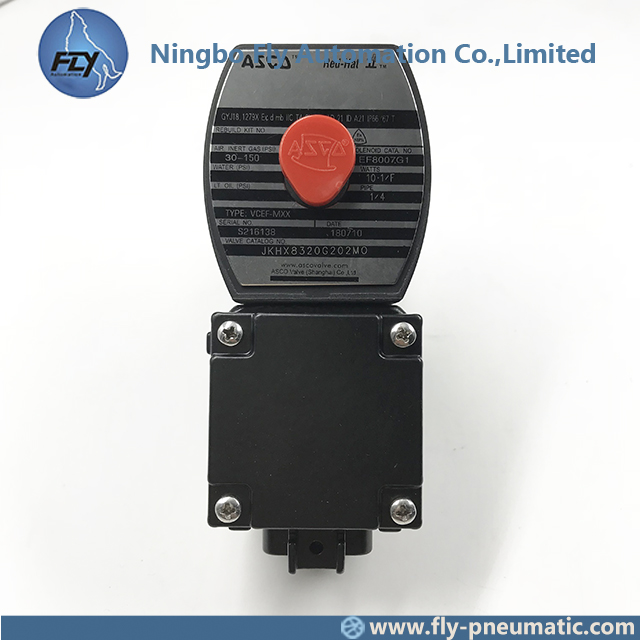

4. Product show

IMG_6124IMG_6127


5. Electrical

Electrical


6. Construction

Construction


7. Features

All NPT connections are in the valve body to allow in-line piping

No Minimum Operating Pressure Differential required

Broadest range of applications

Mountable in any position


8. Solenoid Enclosures

Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.

Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to the catalog number.)

See Optional Features Section for other available options.


9. Nominal Ambient Temp. Ranges

AC: 32°F to 125°F (0°C to 52°C)

DC: 32°F to 104°F (0°C to 40°C)

Note: Some stainless steel constructions are rated -40°F (-40°C). See note √ in specifications table.

Refer to Engineering Section for details.


10. Approvals

CSA certified. UL listed General Purpose Valves.

Meets applicable CE directives.

SIL 3 capable per IEC 61508 on normally closed const. Third party certification provided by EXIDA.

Refer to Engineering Section for details.

ATEX/IECEx certified with prefix “EV” as listed.

Refer to Optional Features Electrical Section for details.
