K0303 K303 110VDC Dust Collector Goyen CA20T010-300 CA76MM010-300 DIN 43650A connection, QR Solenoid Coil

1.Voltage:110VDC
2.Power:24 W

Quantity:
  • K0303
  • Goyen

1.Product name: K0303 K303 110VDC Dust Collector Goyen CA20T010-300 CA76MM010-300 DIN 43650A  connection, QR Solenoid Coil


2. Suitable for:

All integrally piloted Goyen dust collector diaphragm valves, RCA3D series pilot valves and pilot valve enclosures, and 3DS pilot valves.


3. Operation

Recommended  on time range: 50-500ms

Recommended time  between pulses: 1 minute or greater.


4. Construction:

Encapsulation: PA-6

C-frame: Mild steel zinc passivated

Bobbin: PA-6

Insulation class: B/130°C

Rating: Non-continuous use only

Clip: Mild steel (mechanically plated)


5. Installation:

Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top. Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.


6. Approvals

• C-Tick

• EMC (89/336/CE)

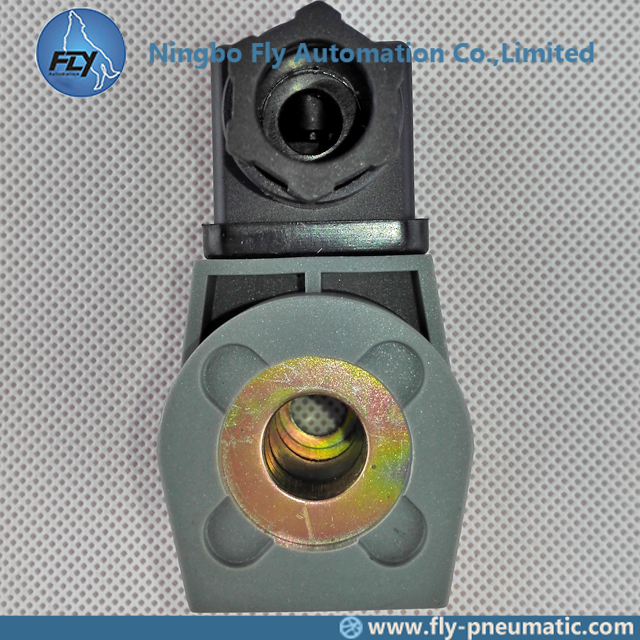

7. Product show

4


8. Drawing

Drawing
