K0305
Goyen
1.Product name: K0305 K305 24VDC Pulse Jet Valve Goyen CA45T010-300 CA25DD010-300 CAC25FS010-300 Solenoid Coil
2. Suitable for:
All integrally piloted Goyen dust collector diaphragm valves, RCA3D series pilot valves and pilot valve enclosures, and 3DS pilot valves.
3. Approvals
• C-Tick
• EMC (89/336/CE)
4. Installation:
Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top. Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.
5. Construction:
Encapsulation: PA-6
C-frame: Mild steel zinc passivated
Bobbin: PA-6
Insulation class: B/130°C
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)
6. Operation
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater.
7. Drawing

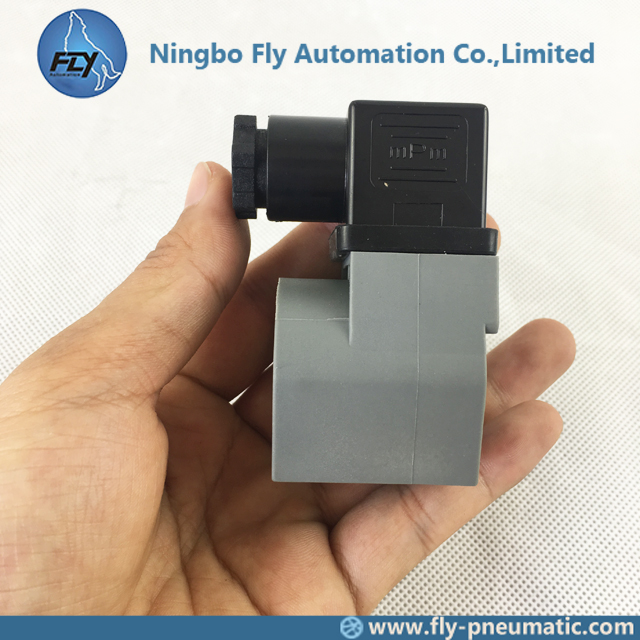

8. Product show
