K0306 K306 12VDC Pulse Solenoid Valve Goyen CA20T010-300 CA25T010-300 CA76MM010-300 Solenoid Coil

1.Voltage:12VDC
2.Power:20 W
Availability:
  • K0306

  • Goyen

1. Product name: K0306 K306 12VDC Pulse Solenoid Valve Goyen CA20T010-300 CA25T010-300 CA76MM010-300 Solenoid Coil


2. Installation:

Slide solenoid over ferrule tube. Ensure terminals are on top. For QT and QF type solenoids ensure nylon washer is in place. Slide clip onto pilot iron top. Ensure voltage supplied to solenoid is within -10% and +15% of the solenoid rated voltage.


3. Suitable for:

All integrally piloted Goyen dust collector diaphragm valves, RCA3D series pilot valves and pilot valve enclosures, and 3DS pilot valves.


4. Approvals:

• C-Tick

• EMC (89/336/CE)


5. Operation:

Recommended  on time range: 50-500ms

Recommended time  between pulses: 1 minute or greater.


6. Construction:

Encapsulation: PA-6

C-frame: Mild steel zinc passivated

Bobbin: PA-6

Insulation class: B/130°C

Rating: Non-continuous use only

Clip: Mild steel (mechanically plated)


7. Drawing:

Drawing

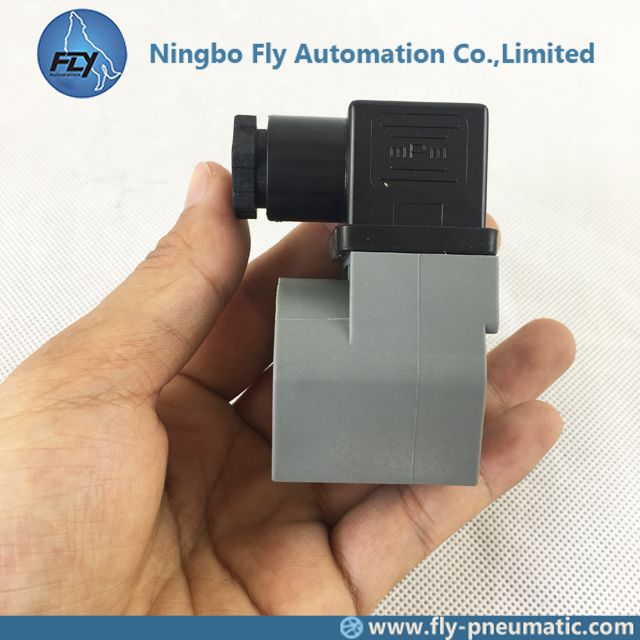

8. Product show:

IMG_4622
