K200262 ASCO Pulse Jet Valve 8353C35 1 inch Diaphragm Repair Kits

Port size:1 inch

Quantity:
  • K200262
  • ASCO

1.Product name: K200262 ASCO Pulse Jet Valve 8353C35 1 inch Diaphragm Repair Kits


2.Features

• Specially designed for reverse jet-type dust collector systems.

• High flow Cv’s to 140 for effective bag cleaning.

• High cycle life.

• Fast opening/closing.


3.Solenoid Enclosures

Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.

Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to catalog number.) See Optional Features Section for other available options. Consult your local ASCO office for details on accessories.


4.Construction

Valve Parts in Contact with Fluids
Body Aluminum
Seals NBR
Diaphragm NBR, HYT, or CR, as noted
Discs NBR or PA, as noted


5.Nominal Temperature Ranges

Ambient: AC constructions: 0˚F to 185˚F (-18˚C to 85˚C).  150˚F (66˚C) maximum for valves with HYT  diaphragm.  Consult local sales office for DC constructions.

Fluids: 0˚F to 185˚F (-18˚C to 85˚C), except as noted.  For temperatures to 300˚F (149˚C), specify FPM,  suffix “V” (except where noted). Refer to Engineering Section for details.

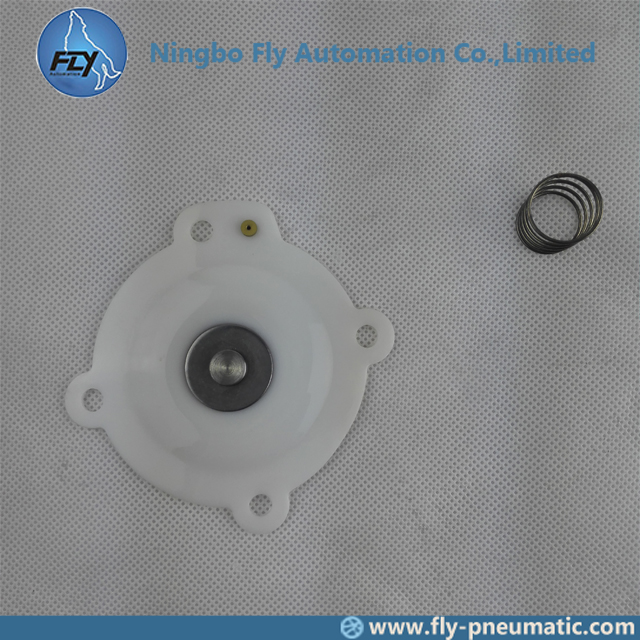

6.Product show

2


7.Drawing

Drawing
