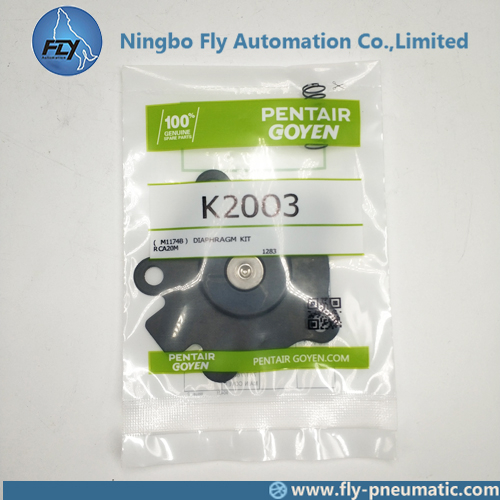

1. Product Name: K2003 Goyen Pulse jet valve CA20MM RCA20MM Diaphragm repair kit
1.The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life
2.Diaphragm Material: Buna(NBR)
4.Working pressure: 0.05-1.0 Mpa
5.Working Temperature: -20ºC- +82 ºC
6.Lifespan:1 million cycles
3. Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
5. Pulse jet valve installation
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4, Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Integrally piloted valves meet the requirements of:
2. EMC (89/336/CE)
3. ATEX II 3 G & D (94/9/CE) (when fitted with QR or QF type solenoids)7. Goyen diaphragm
| Model|| Nitrile|| Viton|| Low Temperature|
| CA/RCA20T|| K2000|| K2007|| NA|| Diaphragm kits include main and secondary diaphragm (where required) and all springs. These kits are for discontinued valves|
| CA/RCA25T|| K2501|| K2503|| K2504|
| CA/RCA35T|| K3500|| K3501|| K3502|
| CA/RCA40T|| K4000|| K4007|| NA|
| CA/RCA45T|| K4502|| K4503|| K4522|
| CA/RCA50/62T|| K5004|| K5000|| NA|
| CA/RCA76T|| K7600|| K7601|| NA|
| Pilot repair kit|| K0380|| NA|| o-ring, armature assembly, armature spring, ferrule|
| Pilot repair kit|| K0580|
