1. Product name: M/D40 Autel Diaphragm Valves DN40 Inch AE1440B AE1440I06 AE2440I06 Diaphragm repair kit
2. General specification
Static Operation: Normally closed
Temperature: -20 °C +100 °C
Max Pressure: 8 Bar
Connection: Threaded
Material: Die cast aluminium
Pilot: Brass
Fluid: Filtered air not lubricated
3. General Description
The Threaded Connection series is a range of electrovalves used for cleaning filter elements in air filtration system. The characteristic of this model is the female threaded connection (both in output and input). The quick opening with a great volume of air allows an high jet in a short time and a reduced air consumption. All That is achieved from a deep studying of internal geometrical characteristics and from a technological research on diaphragm. This guarantees rapid openingclosing and a working for over a million of shots.
4. Operation
Recommended on time range: 50-500ms Recommended time between pulses: 1 minute or greater
5. Suitable for
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

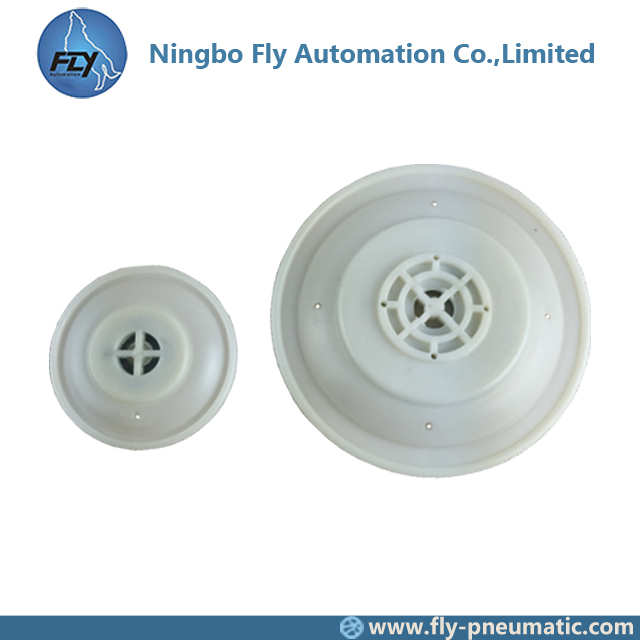

6. Product show
7. Drawing
