1. Product name: Q22HD-20 Pipe Valve Q22HD Series PTFE Seals 2/2 3/4" Actuator control valve Sanitation truck
2. Size
| Type | A | B | C | D | H | M |
| Q22HD-15 | 46 | 26 | 30 | G1/2" | 96 | G1/8" |
| Q22HD-20 | 54 | 32 | 37 | G3/4" | 107 | G1/8" |
| Q22HD-25 | 66 | 34 | 37 | G1" | 118 | G1/8" |
| Q22HD-40 | 80 | 53 | 65 | G1-1/2" | 162 | G1/8" |
| Q22HD-50 | 105 | 66 | 78 | G1/8" | 180 | G1/4" |
3. Characteristic
· Control with just one two-position three-way valve
· Explosion-proof design for special environments
· Large flow, suitable for all kinds of gas and liquid circulation
· Low starting pressure and good closing sensitivity
4. Performance parameters
| Type | Circulation path | Media | Work pressure | Control pressure | Temperature range | Kv(m³/k) |
| Q22HD-15 | 13mm | Air,oil,water | 0-0.8MPa | 0.4-0.8MPa | 0.5-60℃ 0.5-150℃ | 4 |
| Q22HD-20 | 16mm | 5 | ||||
| Q22HD-25 | 22mm | 10 | ||||
| Q22HD-40 | 35mm | 25 | ||||
| Q22HD-50 | 45mm | 40 |

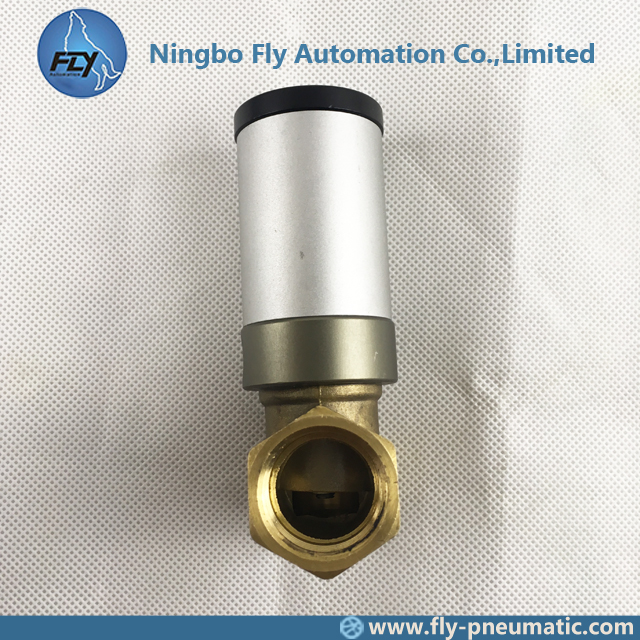

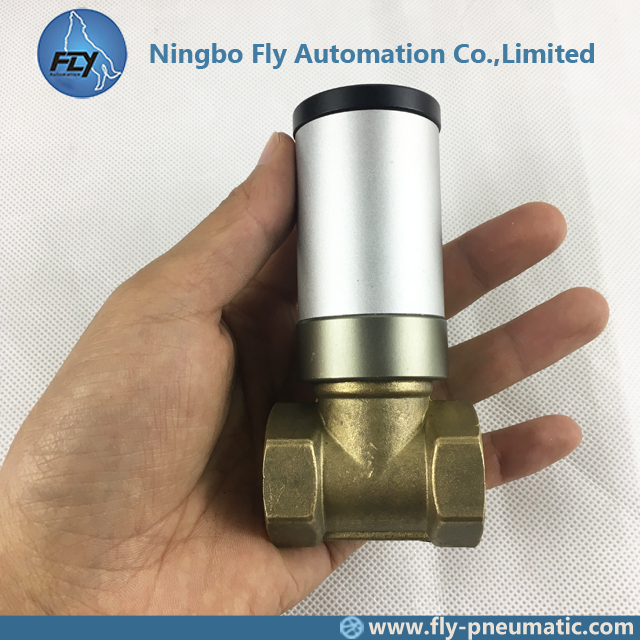

5. Product show
6. Description
This product is actually a combination of a single-acting cylinder and a fluid copper valve body. Various internal accessories are made of waterproof material. This product can be widely used in food, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment. In addition, it can be customized for customers according to their needs. For example, products with special requirements such as high temperature resistance and strong acid resistance can also be produced by our company.
Our company has also studied the products of other manufacturers and found that other manufacturers are either very expensive or cut corners. For example, the company found that many domestic manufacturers use rubber vulcanized parts as sealing materials. There is also a company that changed the place of copper to aluminum. These are extremely unprofessional, although it can be used for a short period of time, but it is almost impossible to guarantee quality for a long time.
7. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
