Q22HD-50 Pipe Valve Q22HD Series PTFE Seals 2/2 1-1/2 inches Pneumatic valve Actuator control valve

1. Product name: Q22HD-50 Pipe Valve Q22HD Series PTFE Seals 2/2 1-1/2 inches Pneumatic valve Actuator control valve

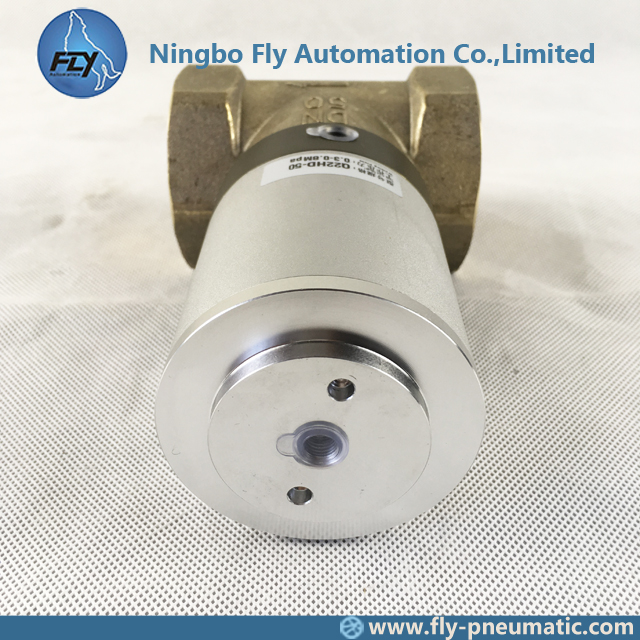

2. Product show

3. Characteristic

· Control with just one two-position three-way valve

· Explosion-proof design for special environments

· Large flow, suitable for all kinds of gas and liquid circulation

· Low starting pressure and good closing sensitivity

4. Description

This product is actually a combination of a single-acting cylinder and a fluid copper valve body. Various internal accessories are made of waterproof material. This product can be widely used in food, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment. In addition, it can be customized for customers according to their needs. For example, products with special requirements such as high temperature resistance and strong acid resistance can also be produced by our company.

Our company has also studied the products of other manufacturers and found that other manufacturers are either very expensive or cut corners. For example, the company found that many domestic manufacturers use rubber vulcanized parts as sealing materials. There is also a company that changed the place of copper to aluminum. These are extremely unprofessional, although it can be used for a short period of time, but it is almost impossible to guarantee quality for a long time.

5. Performance parameters

Type	Circulation path	Media	Work pressure	Control pressure	Temperature range	Kv(m³/k)
Q22HD-15	13mm	Air,oil,water	0-0.8MPa	0.4-0.8MPa	0.5-60℃ 0.5-150℃	4
Q22HD-20	16mm					5
Q22HD-25	22mm					10
Q22HD-40	35mm					25
Q22HD-50	45mm					40

6. Size

Type	A	B	C	D	H	M
Q22HD-15	46	26	30	G1/2"	96	G1/8"
Q22HD-20	54	32	37	G3/4"	107	G1/8"
Q22HD-25	66	34	37	G1"	118	G1/8"
Q22HD-40	80	53	65	G1-1/2"	162	G1/8"
Q22HD-50	105	66	78	G1/8"	180	G1/4"
