QGB 10A-5 series Non-oil lubricated cylinder QGB 10A-5VFA100B250-A5

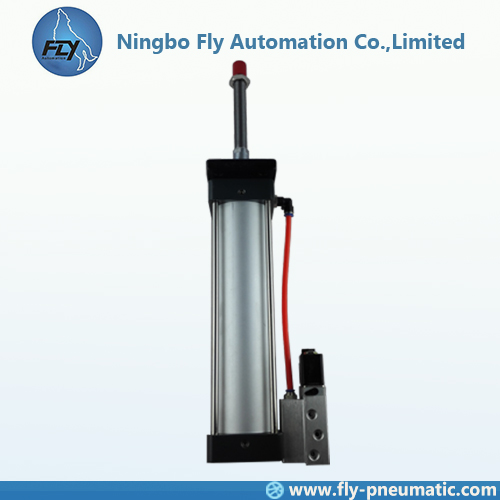

QGB 10A-5VFA100B250-A5 is a cylinder model. 100mm bore, 250mm stroke, no need lubrication. The valve is Herion 2636000F, 1/4", 5/2-way, solenoid valve.

Quantity:
  • QGB 10A-5VFA100B250-A5
  • 0007
  • Aluminium
  • 1.5~8bar
  • 50~500 mm/sec
  • -25~+80℃ (No frozen)
  • 100mm
  • 250mm
1: Product Name: QGB 10A-5 series Non-oil lubricated cylinder QGB 10A-5VFA100B250-A5

2: Specification

Type 10A-5(standard) 10A-5R(with switch) 10A-5V(with valve) 10A-5K(with valve and switch)
Bore mm 32 40 50 63 80 100 125 160 200 250 32 40 50 63 80 100 125 160 200
Max. stroke 500 800 1000 1500 500 800 1000 1500
Operating pressure bar 0.5~10 1.5~8
Max. pressure bar 15 12
Operating speed mm/sec 50~700 50~500
Operating temperature ℃ -25~+80 (No frozen)
Working medium clean air
Lubricator No need
Cushion Variable cushion
Adjustable cushion stroke 20 25 28 30 20 25 28
Shortest stroke mm  Mount Type 10A-5R 10A-5V 10A-5K
Mount TC Φ32~Φ125 125 75 125
Φ160~Φ200 120 165 165
Other mount Φ32~Φ125 30 50 50
Φ160~Φ200 110 165 165
Note:
1. When start a cylinder with the switch at the middle position, the maximum speed of the cylinder should under of 300mm/sec, so that the response speed of the load such as a relay to adapt, work in good condition
2. Switches must be added to the load before they can be used, otherwise straight through any power will be burned.
3: Installation and usage
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
5.The medium used by cylinder shall be filtered to 40μm or below.
6. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the  surface. Anti-dust caps shall be added in air inlet and outlet ports.
7.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
8.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
9.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
4: Structure
structure

dimension
