1. Product name: R120 Pneumatic Roller Vibrator Findeva R series Steel Alloy Roller Pneumatic Oscillator 3/8" BSP
2. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
3. Dimension
| Type | A | B | C | D | E | F | G | H | Weight |
| mm | mm | mm | mm | mm | mm | mm | BSP | KG | |
| R50 | 50 | 29 | 86 | 68 | 12 | 7 | 40 | G1/8" | 0.3 |
| R65 | 65 | 37 | 113 | 90 | 16 | 9 | 50 | G1/4" | 0.6 |
| R80 | 80 | 43 | 128 | 104 | 16 | 9 | 60 | G1/4" | 1.0 |
| R100 | 100 | 52 | 160 | 130 | 20 | 11 | 80 | G3/8" | 1.9 |
| R120 | 120 | 77 | 194 | 152 | 24 | 24 | 17 | G3/8" | 4.4 |
4. Performance
5. Pneumatic ball vibrator R series
1. Aluminium Body
2. Rotary Vibrator
3. Frequency / Force adjustable by air pressure
4. Suitable for temperature up to 140 ℃
5. Force 1070 N to 12500 N
6. Structure and material
1. Extruded Aluminium Alloy Casting
2. Cast Iron Liner
3. Steel Alloy Roller
4. Plastic End Plates
5. Vertical Air Inlet
6. Horizontal Air Inlet
7. Air Groove
8. Inlet Jets
9. Exhaust Ports
10. Exhaust Diffuser
11. Silencer Plate
12. Base Mounting Holes
13. Lateral Mounting Holes

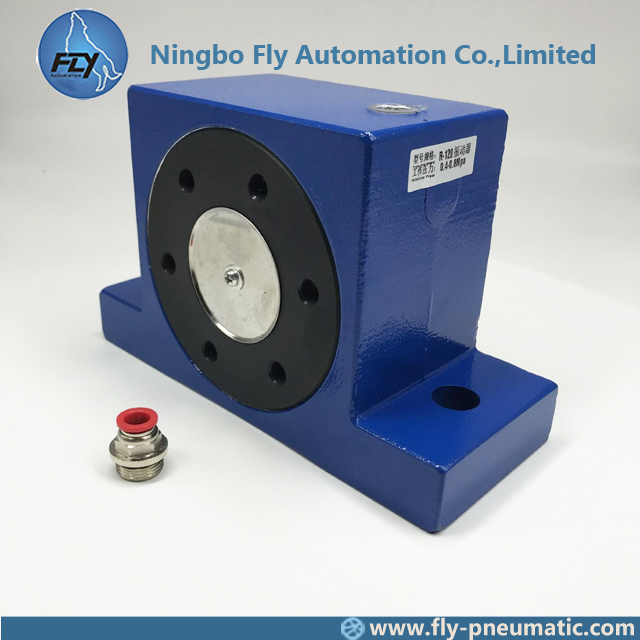

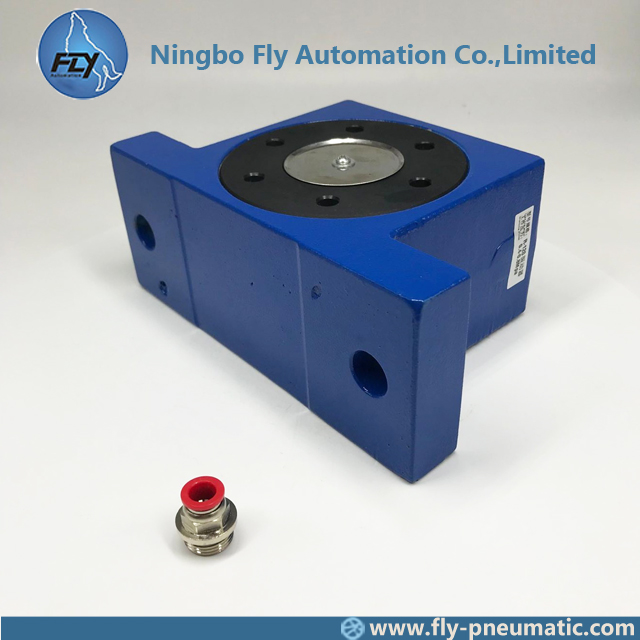

7. Product show
