RCA3PV
Goyen

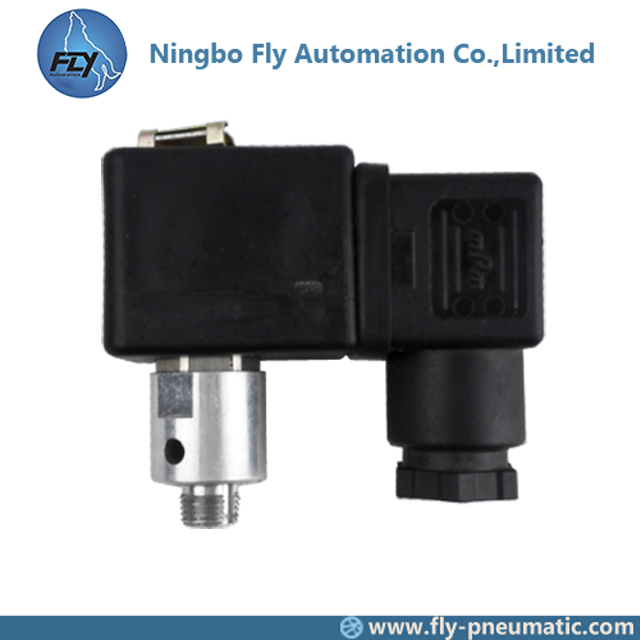

1. Product Name: RCA3PV Goyen Control The Dust Collector Diaphragm Valve Remote Solenoid Pilot Valve
2. FOR INTEGRAL PILOT (CA) APPLICATIONS
The RCA3PV pilot is another option for integral pilot (CA) applications. The RCA3PV pilot is a screw-in pilot available in 1/8˝ and ¼˝ port sizing.
RCA3DM and RCA3PV are suitable piloting options for all 4 Series valves and the RCA35T diaphragm valve.
Encapsulation: Nylon
Insulation class: H /180°C
IP Rating: IP65
Rating: Non-continuous use only
Clip: Mild steel (mechanically plated)
No pilot valve overhaul kits are available for the RCA3PV pilot; however, coil kits are available as listed below:
K0203 – Dual rating: 110 V DC 18 W or 220/240 V 50/60 Hz – kit includes coil, stabilus clip and washer.
K0204 – Dual rating: 48 V DC 18 W or 115 V 50/60 Hz – kit includes coil, stabilus clip and washer.
K0205 – Dual rating: 24 V DC 18 W or 48 V 50/60 Hz – kit includes coil, stabilus clip and washer.
K0206 – Dual rating: 12 V DC 18 W or 24 V 50/60 Hz – kit includes coil, stabilus clip and washer.
8. How to order
Flow | Maximum working pressure | Minimum working pressure | Min. temperature | Max. temperature | Fluid media |
0.28 Cv | 860 kPa | 0 kPa | −40°C | 82°C | Air or insert gas |
9. Drawing
10. Product show
