RCA5D2
Goyen
1. Product Name: RCA5D2 Diaphragm Valve Control The Dust Collector Goyen Remote Jet Pilot Valve
2. Product Description
This product has been designed with a 4.76mm (3/16") orifice and under the full range of voltages, can operate all of Goyen's current main valve assemblies used in reverse pulse cleaning systems.
This type of pilot valve must be electrically protected by a customer supplied enclosure or via Goyen's range of pilot operated solenoid enclosures.
The pilot valve allows operation of the reverse pulse diaphragm valve from a remote position. This may be required for maintenance purposes or for electrical protection.
The pilot valve orifice: 5 mm (3/16")
Flow Performance: .68 Cv/.58 kV
Maximum Working Pressure: 860 kPa (125 psi)
Recommended Working Pressure: 760 kPa (110 psi)
Minimum Working Pressure: 30 kPa (5 psi)
7. Temperature Rating
Working Temperature Range: -40°C to 80°C (-40°F to 176°F)
Dry air or inert gas
9. Solenoid
Coil type: B2 Purple Screwed
B2 Purple used in conduit entry enclosures IP31 Rated
BR Grey DIN Connected IP65 Rated
Insulation: Class B/130°C, self extinguishing Nylon 6
10. Pilot
Body and Ferrule retainer: Pressure Die Cast Aluminium
Ferrule tube: 302 Stainless Steel
11. Drawing

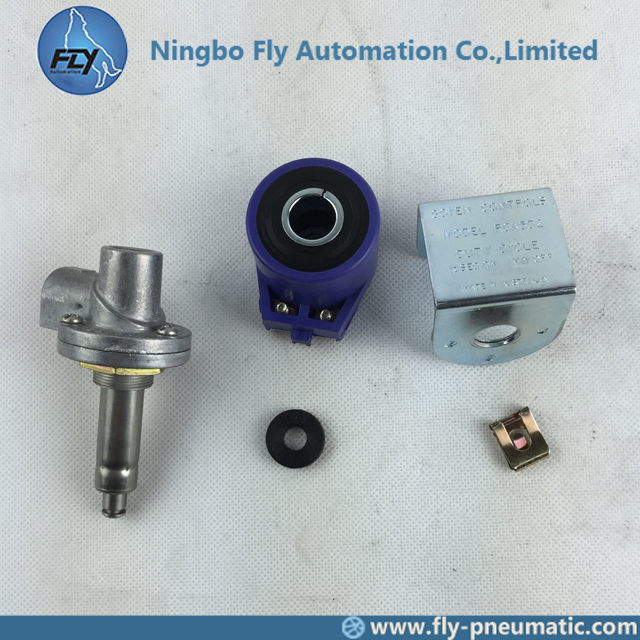

12. Product show
