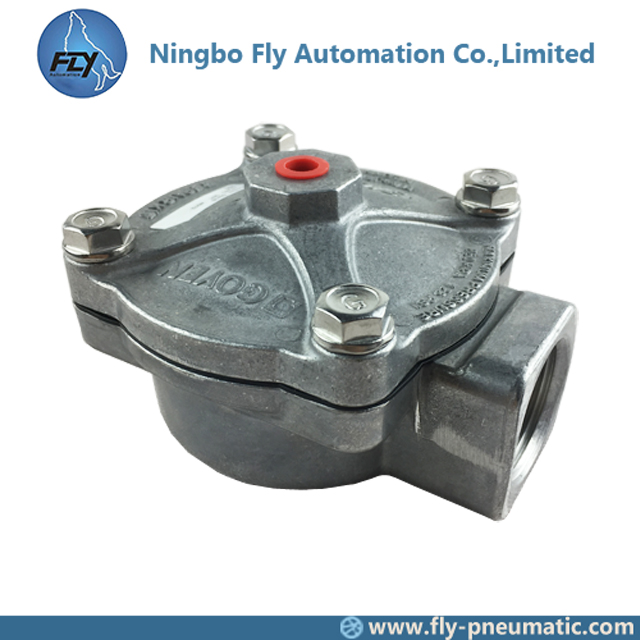

RCAC25T4 Goyen 1" Dust Collector T Series Pulse Jet Valve

1. Voltage: DC 24V, AC 110V, AC 220V
2. Port size: DN25

Quantity:
  • RCAC25T4
  • Goyen

1. Product Name: RCAC25T4 Goyen 1" Dust Collector T Series Pulse Jet Valve


2. Order code
Order code
3.
SUITABLE FOR

Dust collector applications, in  particular for reverse pulse jet filter  cleaning and its variations, including  bag filters, cartridge filters and  envelope filters, ceramic filters  and sintered metal fibre filters




4.  DESCRIPTION
High-performance diaphragm valve  with threaded ports. Equipped with  ‘Shockwave’ springless diaphragm. The  4 series valves are available as remote  pilot valves and may be converted to  integral pilot using either the RCA3DM  or RCA3PV screw-in pilots. Outlet is at  90° to inlet.




5. OPERATION

Recommended on-time range:  50 to 500 ms

Recommended time between  pulses: 1 minute or greater



6. CONSTRUCTION

Body: Aluminium (diecast)

Screws: 304 Stainless steel

Diaphragm: Proprietary high-performance engineering  thermoplastic Elastomer  or Viton



7. MAINTENANCE

Before conducting any maintenance  activity on the system ensure that  components are fully isolated from  pressure and power supplies. Pressure  and power should not be reapplied until  the valve has been fully assembled. Diaphragm and pilot unit inspection  should be conducted annually.



8. APPROVALS

The RCAC25T4 meets the requirements  of the European Low Voltage Directive  2006/95/EC, when fitted with the  RCA3PV pilot.


9.Drawing

drawing

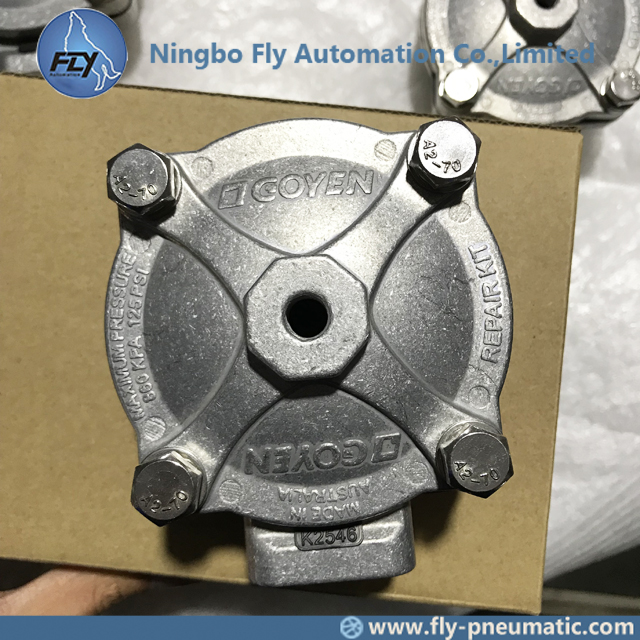

10.Product show

IMG_9170
