SCXE222E003
ASCO
1. Product Name: SCXE222E003 ASCO 222 Series Pilot Operated General Service Solenoid Valve
2. Serves time
0:00 - 23:59
From Monday to Sunday
3. GENERAL
Differential pressure 2 - 10 bar [1 bar = 100 kPa]
Flow (Qv at 6 bar) 1/4 = 860 l/min (ANR)
3/8 = 3000 l/min
1/2 = 3800 l/min
fluids air, inert gas, filtered
temperature range -25°C to +60°C
seal materia ls NBR (nitrile) + PUR (polyurethane)

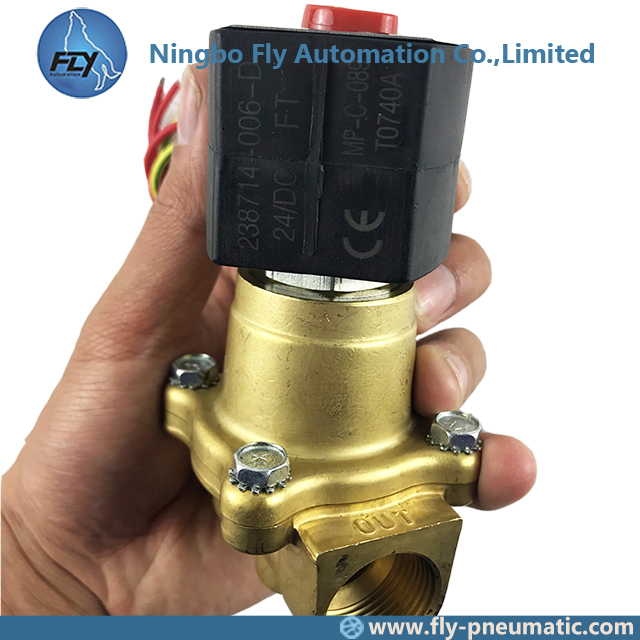

4. Product show
5. FEATURES
● ASCO/JOUCOMATIC solenoid valves satisfy all relevant EC Directives
● The monostable spool valves, series 551, have TÜV certified IEC 61508 Functional
Safety data and can be used up to SIL-4/AK-7
● The spool valves 5/2 have threaded port connections
● All the exhaust ports of this spool valve are pipable, providing better environmental
protection, particularly recommended for sensitive areas such as clean rooms, and
applications in the pharmaceutical and food processing sectors
● The valve offers environmental protection against the ingress of liquids, dusts or any
other foreign matter (environmental-protected construction)
● Epoxy moulded coil for general service applications
