SCXR353G230 ASCO 353 Series Dust Collector Explosion Proof Aluminium 3" Manifoid Mounting Pulse Jet Valve

Share to:

SCXR353G230 ASCO 353 Series Dust Collector Explosion Proof Aluminium 3" Manifoid Mounting Pulse Jet Valve

1. Port size: 3 inches
2. Material: Aluminium

Availability:

Quantity:


Inquire Add to Basket

Model: SCXR353G230
Brand: ASCO

Product Description

1. Product Name: SCXR353G230 ASCO 353 Series Dust Collector Aluminium 3" Manifoid Mounting Pulse Jet Valve

2. Order code: SCXR353G230

3. GENERAL

Differential pressure: 0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range: -20 to +85°C

Coil insulation class: F

Connector: Spade plug (cable Φ 6 - 10 mm)

Electrical safety: IEC 335

Standard voltages: DC (=): 24V (Other voltages and 60 Hz on request) AC (~): 24V - 115V - 230V / 50 Hz

4. MATERIALS IN CONTACT WITH FLUID

Note: Ensure that the compatibility of the fluids in contact with the materials is verified

Body: Aluminium

Core tube: Stainless steel

Core and plugnut: Stainless steel

Springs: Stainless steel

Seals & disc: NBR (nitrile)

Diaphragms: CR (chloroprene)

Shading coil: Copper

5. Technical Parameter

Ordering Code	SCXE353.060
Working-pressure	0.2~0.85MPa
Working Medium	Clean Air
Voltage	AC110V/AC220V/DC24V
Current	0.8A 0.23A
Application Environment	Temperature: -25℃-+55℃),relativehumidityorairnomorethan 85%
Diaphrahm Lifespan	One Million Blow time Or 3 Years

6. Operating options

1. Waterproof enclosure with embedded screw terminal coil according to protection class IP67, CEE 10

2. Explosionproof solenoids for hazardous locations according to “ATEX” (CENELEC) and national standards
3. Electronic timer

4. Explosionproof and watertight solenoids according to “NEMA” standards

5. Hose connection executions (3" only)

6. Compliance with “UL” standards

7. Plug with visual indication and/or peak voltage suppression

8. Valves can also be supplied with FPM (fluorelastomer) diaphragms and seals. Use the appropriate suffix letter for identification

7. Quality Standards

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

8. After-sale Service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

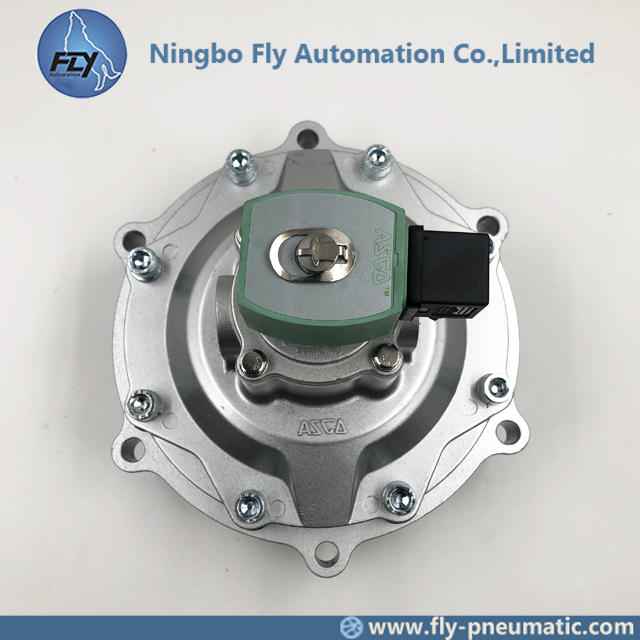

9.Product show
