SK120 Japan Seishin Pneumatic percussion hammer SK Sreies Air vibrator

SK-Air Knocker
SK-type is the latest model of air knockers. Principle of the strong impact is magnetic as the same as the old types. Weights of the main bodies are reduced and durability is increased.

Quantity:
  • SK120
  • Seishin

1. Product name: SK120 Japan Seishin Pneumatic percussion hammer SK Sreies Air vibrator


2. Structure and Dimension

dimension

Type ΦA B ΦC D E ΦF G H PCDH S T ΦY R
SK30 65 15 70 10 4 9 1/8 110 55 6 40 27.2 1/4
SK40 90 22 95 16 4 11 1/8 160 70 12 90 34 1/4
SK60 120 30 140 16 4 15 1/4 210 110 12 100 76.3 1/4
SK80 139 40 150 18 4 17 3/8 250 120 14 110 76.3 3/8
SK100 176 44 210 24 6 21 3/8 328 170 22 145 114.3 3/8


3. SK-Air Knocker

SK-type is the latest model of air knockers. Principle of the strong impact is magnetic as the same as the old types. Weights of the main bodies are reduced and durability is increased.


4. Specifications

Type Working pressure Mpa Air Consumption
L/one time
impact force Ns Weight
kg
SK-30 0.35~0.6 0.028 1.0~1.5 1.0
SK-40 0.35~0.6 0.082 3.3~5.1 2.9
SK-60 0.35~0.6 0.228 7.1~10.8 7.8
SK-80 0.35~0.6 0.455 19.3~29.5 11.8
SK-100 0.35~0.6 1.012 44.5~67.9 35.2


5. Products shopping guide

For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.


6. Serves time

0:00 - 23:59

From Monday to Sunday

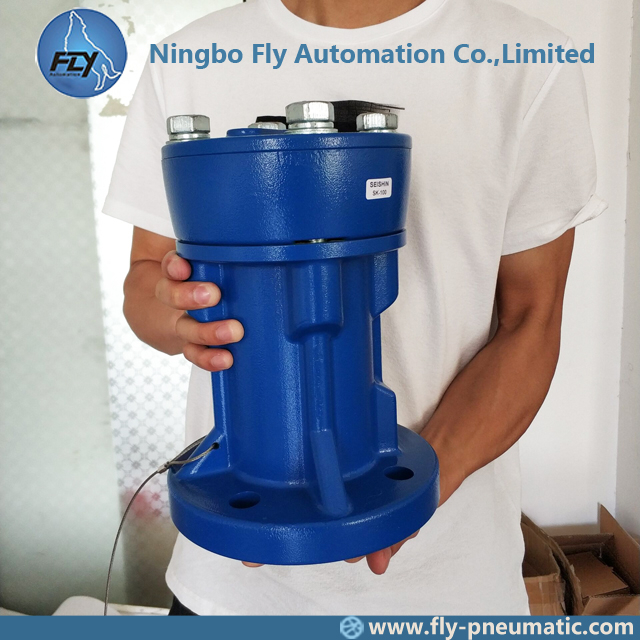

7. Product show

IMG_4323
