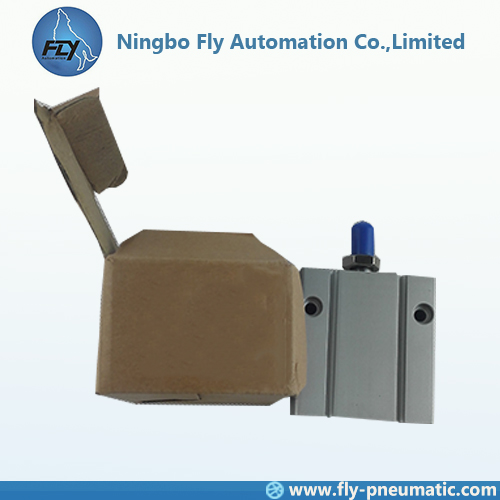

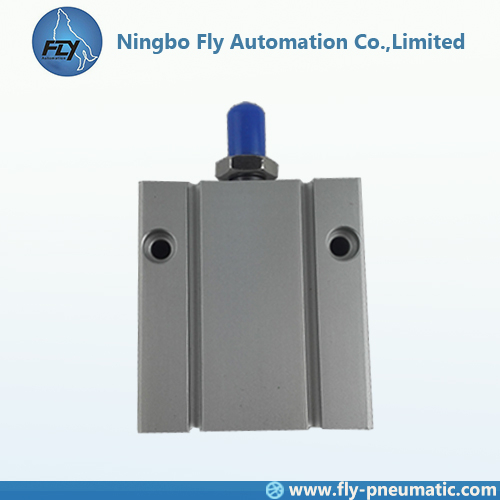

SMC CU Series Free mount cylinder CDU32NiI-15D Double acting Single rod

1. Material: Aluminium alloy
2. Bore: 32mm
3. Stroke: 15mm
4. Built-in magnet

Quantity:
  • CDU32NiI-15D
  • SMC
  • 0022
  • Aluminium
  • 32mm
  • 15mm
  • 1.05 Mpa
  • 0.7 Mpa
  • Rubber bumper
1: Product Name: SMC CU Series Free mount cylinder CDU32NiI-15D Double acting Single rod

2: Specification

Bore size (mm) 6 10 16 20 25 32
Fluid Air
Proof pressure 1.05 Mpa
Maximum operating pressure 0.7 Mpa
Minimum operating pressure 0.12 Mpa 0.06 Mpa 0.05 Mpa
Ambient and fluid temperature Without auto switch: –10 to 70°C (No freezing)
With auto switch: –10 to 60°C (No freezing)
Lubrication Non-lube
Piston speed 50 to 500 mm/s
Cushion Rubber bumper
Rod end thread Male thread
Stroke length tolerance 0~+1.0 mm
3: Order Code
order code

4: Standard Stroke
Bore size (mm) Standard stroke (mm)
6, 10, 16 5, 10, 15, 20, 25, 30
20, 25, 32 5, 10, 15, 20, 25, 30, 40, 50
5: Structures
1. Φ6, Φ10
structure 1 6-10
2. Φ15~Φ32
structure 2 16-32
Bore size
(mm)
A A' B C D E GA GB H J K L R T
7 - 13 22 3 7 15 10 13 10 17 - 7 6 depth 4.8
10 10 - 15 24 4 7 17 10 16 11 18 - 9 6 depth 5
16 11 13 20 32 6 7 17 12 16 14 25 5 12 7.6 depth 6.5
20 12 14 26 40 8 9 19 13 19 16 30 6 16 9.3 depth 8
25 16 18 32 50 10 10 22 13 23 20 38 8 20 9.3 depth 9
32 20 22 40 62 12 11 23 13 27 24 48 10 24 11 depth 11.5
Bore size
(mm)
Without
auto switch
With
auto switch
MM NN P Q QA
S Z S Z
6 33 46 33 46 M3 x 0.5 M3 x 0.5 depth 5 3.2
10 36 52 36 52 M4 x 0.7 M3 x 0.5 depth 5 3.2
16 30 46 40 56 M5 x 0.8 M4 x 0.7 depth 6 4.5 4 2
20 36 55 46 65 M6 x 1.0 M5 x 0.8 depth 8 5.5 9 4.5
25 40 63 50 73 M8 x 1.25 M5 x 0.8 depth 8 5.5 9 4.5
32 42 69 52 79 M10 x 1.25 M6 x 1.0 depth 9 6.6 14 4.5
6: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
7: Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
8: Serves Time
0:00 - 23:59
From Monday to Sunday
