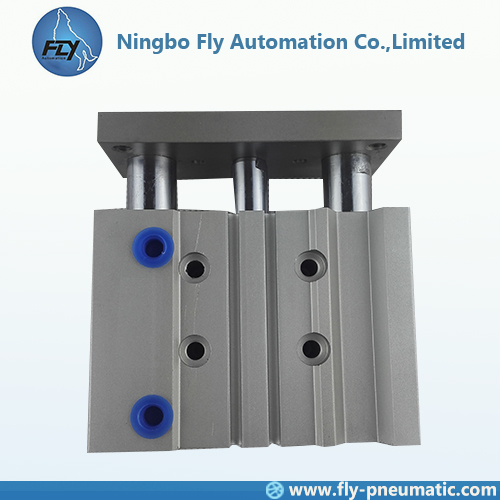

SMC GMPM25-30Z MGPM/L series Slide bearing Compact guide cylinder

Other types please contact freely!
1. Four mounting types provided
2. Piping is possible from two directions
3. Auto switches can be mounted on two sides

Quantity:
  • GMPM25-30Z
  • SMC
  • 0030
  • SMC
  • Aluminium
  • China
  • 25mm
  • 30mm
  • Rubber bumper at both ends
1: Product Name: SMC GMPM25-30Z MGPM/L series Slide bearing Compact guide cylinder

属性下面的图片
2: Specification

Action Double acting
Fluid Air
Proof pressure 1.5MPa
Max. operating pressure 1.0MPa
Min. operating pressure ø12, ø16 0.12MPa
ø20 to ø100 0.1MPa
Ambient and fluid temperature –10 to 60° C (with no freezing)
Piston speed ø12 to ø63 50 to 500mm/s
ø80, ø100 50 to 400mm/s
Cushion Rubber bumper at both ends
Lubrication Non-lube
Stroke length tolerance 0~+1.5mm
3: Order Code
order code

4: Standard Stroke
Bore size (mm) Standard stroke (mm)
12, 16 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250
20, 25 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
32 to 100 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
5: Manufacture of Intermediate Strokes
Part number Refer to standard part numbers and ordering procedure. Indicate -XB10 at the end of the standard model
no. Refer to P.52 for order made specifications.
Applicable
stroke
(mm)
ø12, ø16 1 to 249 ø12, ø16 11 to 249
ø20, ø25, ø32 1 to 399 ø20, ø25 21 to 399
ø40 to ø100 5 to 395 ø32 to ø100 26 to 399
Example Part no.: MGPM20—39
A spacer 1mm in width is installed in a
MGPM20—40. C dimension is 77mm.
Part no.: MGPM20—39—XB10
Special body manufactured for 39mm
stroke. C dimension is 76mm.
6: Constructure and Material
constructure 1
constructure 2
7: Structure and Dimension
1. ø12 to ø25/MGPM, MGPL
structure 1
structure 2
2. ø32 to ø63/MGPM, MGPL

structure 3
structure 4
3. ø80, ø100/MGPM, MGPL
structure 5
structure 6
8: Installation
1.The medium used by cylinder shall be filtered to 40μm or below.
2.When load changes in the work, the cylinder with abundant output capacity shall be ed.
3.Dirty substances in the pipe must be cleared away before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
4.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
5.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be ed into the inlet and outlet ports. As the precision of the manufacture and  guide is high, never dismantle the fixed block or cylinder cover without permission.
8.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
9: Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
10: Products Shopping Guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
11: Serves Time
0:00 - 23:59
From Monday to Sunday
