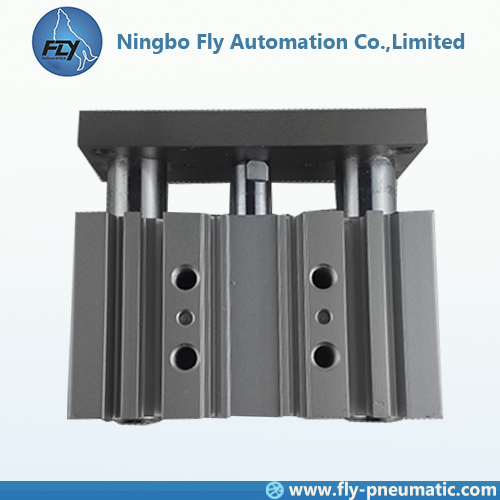

SMC GMPM32-25Z MGPM/L series Slide bearing Compact guide cylinder

Other types please contact freely!
1. Four mounting types provided;
2. Auto switches can be mounted on two sides;
3. Piping is possible from two directions.

Quantity:
  • GMPM32-25Z
  • SMC
  • 0031
  • SMC
  • Aluminium
  • China
  • 32mm
  • 25mm
  • Rubber bumper at both ends
1: Product Name: SMC GMPM32-25Z MGPM/L series Slide bearing Compact guide cylinder

属性下面的图片
2: Specification

Action Double acting
Fluid Air
Proof pressure 1.5MPa
Max. operating pressure 1.0MPa
Min. operating pressure ø12, ø16 0.12MPa
ø20 to ø100 0.1MPa
Ambient and fluid temperature –10 to 60° C (with no freezing)
Piston speed ø12 to ø63 50 to 500mm/s
ø80, ø100 50 to 400mm/s
Cushion Rubber bumper at both ends
Lubrication Non-lube
Stroke length tolerance 0~+1.5mm
3: Order Code
order code

4: Standard Stroke
Bore size (mm) Standard stroke (mm)
12, 16 10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250
20, 25 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
32 to 100 25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
5: Manufacture of Intermediate Strokes
Part number Refer to standard part numbers and ordering procedure. Indicate -XB10 at the end of the standard model
no. Refer to P.52 for order made specifications.
Applicable
stroke
(mm)
ø12, ø16 1 to 249 ø12, ø16 11 to 249
ø20, ø25, ø32 1 to 399 ø20, ø25 21 to 399
ø40 to ø100 5 to 395 ø32 to ø100 26 to 399
Example Part no.: MGPM20—39
A spacer 1mm in width is installed in a
MGPM20—40. C dimension is 77mm.
Part no.: MGPM20—39—XB10
Special body manufactured for 39mm
stroke. C dimension is 76mm.
6: Constructure and Material
constructure 1
constructure 2
7: Structure and Dimension
1. ø12 to ø25/MGPM, MGPL
structure 1
structure 2
2. ø32 to ø63/MGPM, MGPL

structure 3
structure 4
3. ø80, ø100/MGPM, MGPL
structure 5
structure 6
8: Installation
1.The medium used by cylinder shall be filtered to 40μm or below.
2.When load changes in the work, the cylinder with abundant output capacity shall be ed.
3.Dirty substances in the pipe must be cleared away before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
4.The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.
5.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
8.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust cap shall be ed into the inlet and outlet ports. As the precision of the manufacture and  guide is high, never dismantle the fixed block or cylinder cover without permission.
9: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
3. Also we can send by your delivery acount if you want.
4. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
10: After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
