You are here: Home » Products » Air-Operate Diaphragm Pump » Graco Diaphragms » 15B312 Graco Husky 1590 Series 1 1/2" Double Diaphragm Pumps DB3311 DB2311 DT5A88 Maintenance kit
Share to:

15B312 Graco Husky 1590 Series 1 1/2" Double Diaphragm Pumps DB3311 DB2311 DT5A88 Maintenance kit

Size: 1 1/2"

Quantity:
  • 15B312
  • Graco Husky 1590 Series

1. Product name: 15B312 Graco Husky 1590 Series 1" Double Diaphragm Pumps DB3311 DB2311 DT5A88 Maintenance kit


2. After-sale service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


3. Product show

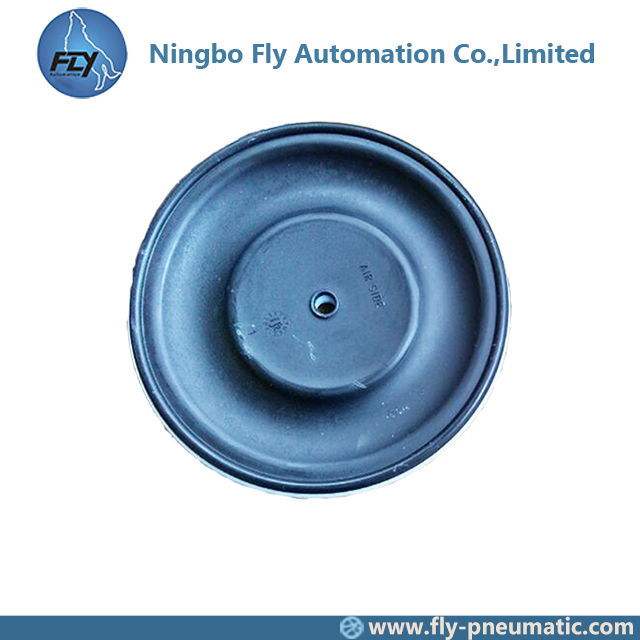

N1


4. Features

1. The product is suitabled for Graco Husky and Verder pneumatic diaphragm pumps putout port size 1 1/2".

2. It can be made in different material used in different environments.

 A. In usual, Nitrile is the most common. It can be used in sewage treatment, and clean water and ther environments like this.

 B. PTFE, can be used in many environments, include acidity, alkaline and high temperature proformances, all the place Nitrile used it can be used too.

3. Different material means different prices.

4. If you took a order without requirement, we will default Nitrile is the material what you want.

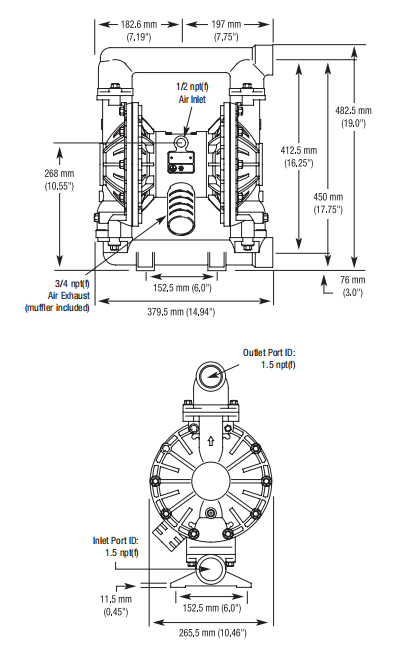

5. 1590 series Pump dimension

1590 Series Pump Dimension

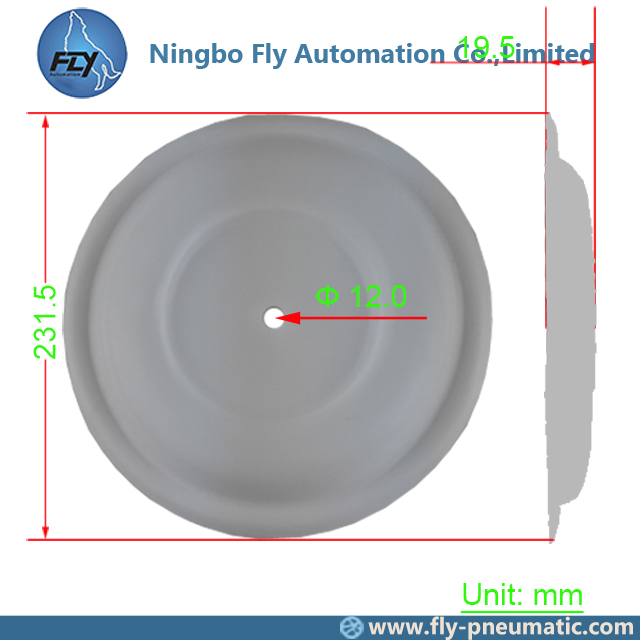

6. Drawing

尺寸


7. Typical System Drawings

Typical System Drawings

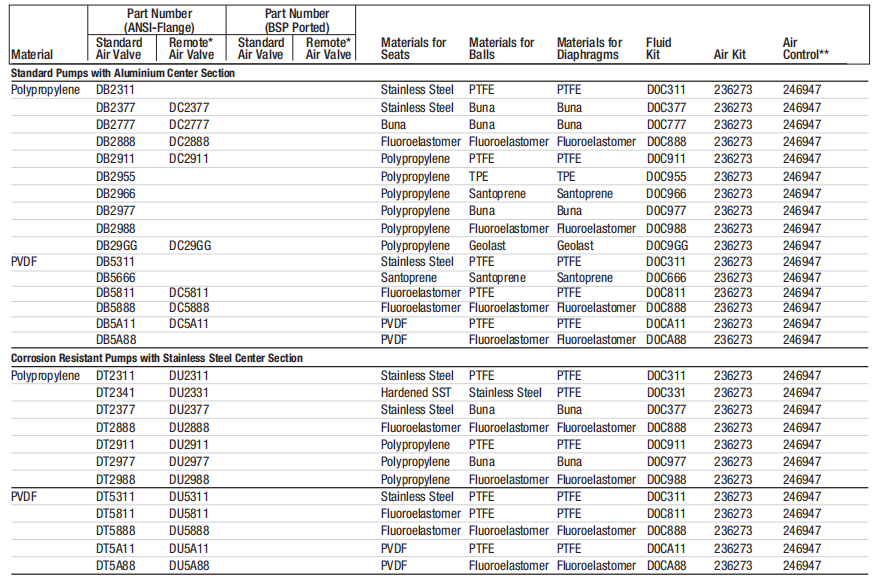

8. Models

Popular Models
