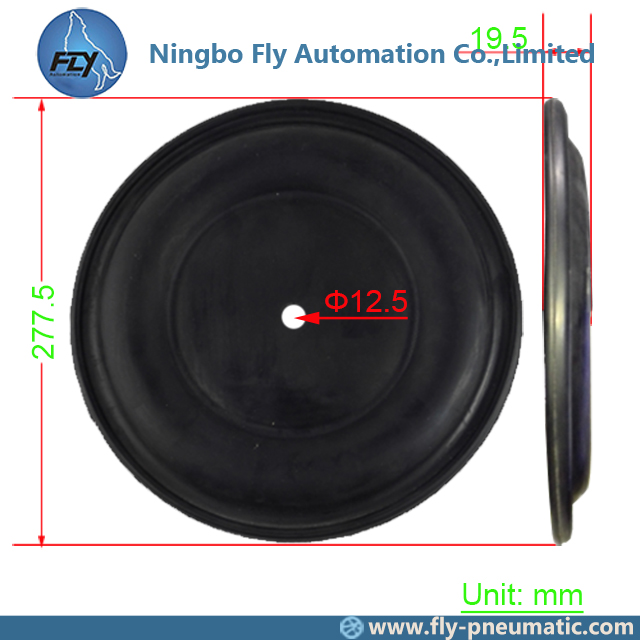

1. Product name: 189296 Graco Husky 2150 Series 2" pneumatic double diaphragm pump DG3525 DG2888 DV4911 Diaphragm repair kit
2. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
3. Product show

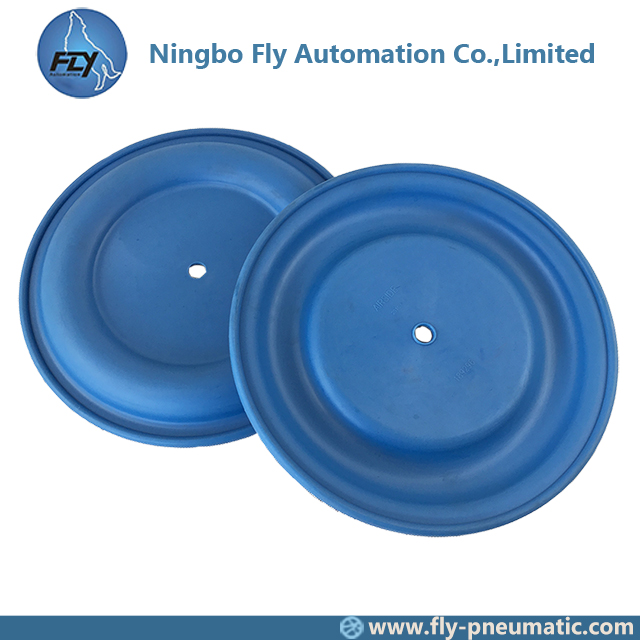

1. The product is suitabled for Graco Husky and Verder pneumatic diaphragm pumps putout port size 2".
2. It can be made in different material used in different environments.
A. In usual, Nitrile is the most common. It can be used in sewage treatment, and clean water and ther environments like this.
B. PTFE, can be used in many environments, include acidity, alkaline and high temperature proformances, all the place Nitrile used it can be used too.
3. Different material means different prices.
4. If you took a order without requirement, we will default Nitrile is the material what you want.

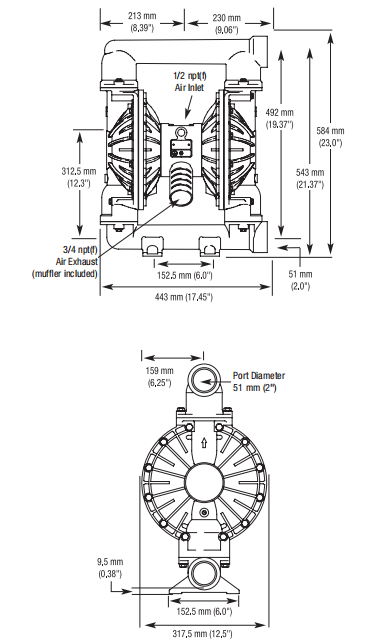

5. 2150 series Pump dimension

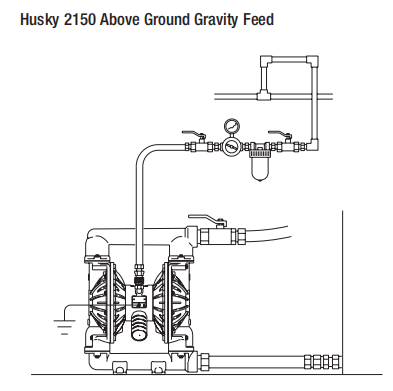

7. Typical System Drawings
