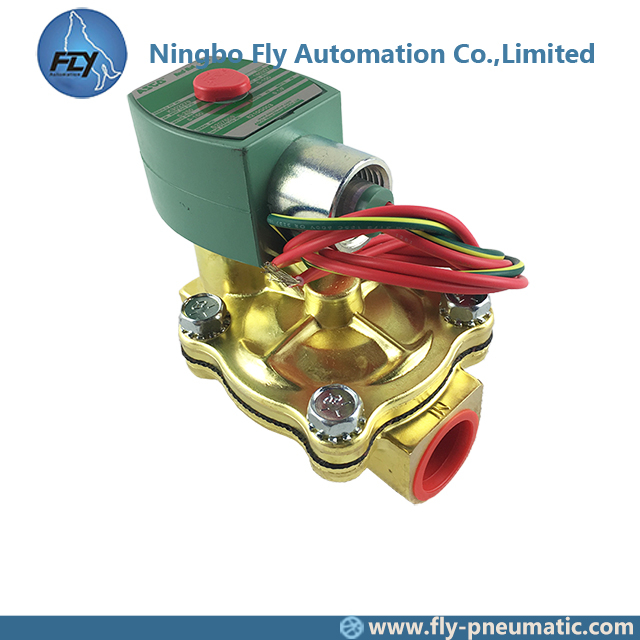

1. Product Name: 8210G003 EF8210G003 ASCO 8210 series Pilot Operated Explosion Proof 3/4 inch Brass Body General Service Solenoid Valve
2. After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
3. Drawing
| Dimensions: inches (mm) | H | K | L | P | W |
| in | 4.16 | 2.66 | 3.84 | 3.52 | 2.75 |
| mm | 106 | 68 | 98 | 89 | 70 |

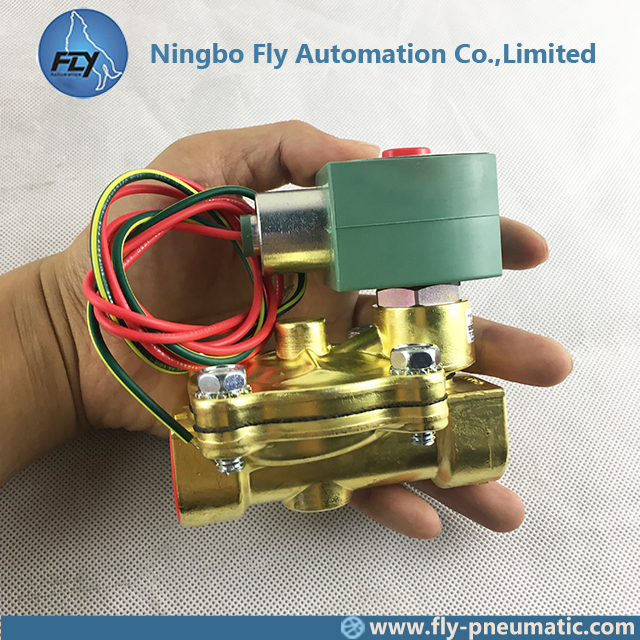

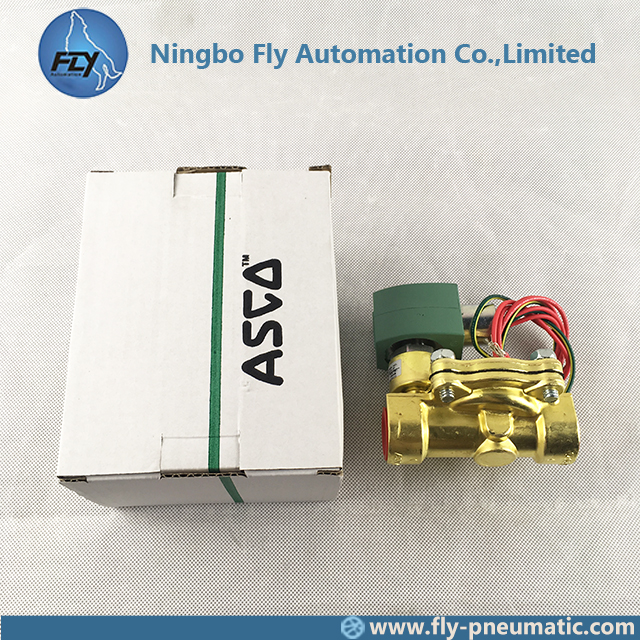

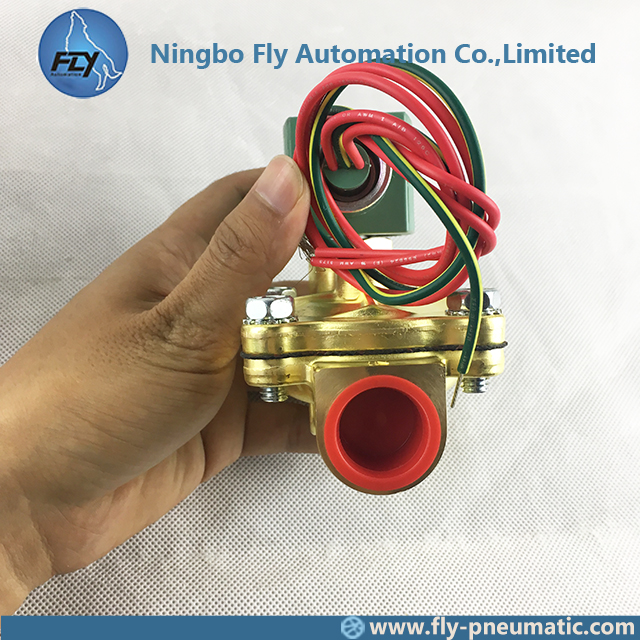

4. Product show
5. Approvals
UL listed as indicated. CSA certified. RedHat II meets applicable CE directives. Refer to Engineering Section for details. ATEX/IECEx certified with prefix “EV” as listed. Refer to Optional Features Electrical Section for details.
6. Features
• Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
• High flow valves for liquid, corrosive, and air/inert gas service
• Industrial applications include: - Car wash - Laundry equipment - Air compressors - Industrial water control - Pumps
7. Solenoid Enclosures
Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I. Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix “EF” to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.
8. Nominal Ambient Temp. Ranges
RedHat II/RedHat AC: 32˚F to 125˚F (0˚C to 52˚C) RedHat II DC: 32˚F to 104˚F (0˚C to 40˚C) RedHat DC: 32˚F to 77˚F (0˚C to 25˚C) (104˚F/40˚C occasionally) 8210G227 AC: 32˚F to 130˚F (0˚C to 54˚C) DC: 32˚F to 90˚F (0˚C to 32˚C) Refer to Engineering Section for details.
9. Electrical
10. Construction
