1. Product Name: 8210G095 EF8210G095 ASCO 8210 series 3/4" DN20 Pilot Operated Brass Body General Service Solenoid Valves
2. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
3. Drawing
| Dimensions: inches (mm) | H | K | L | P | W |
| in | 4.13 | 2.47 | 2.81 | 3.44 | 2.29 |
| mm | 105 | 63 | 71 | 87 | 58 |

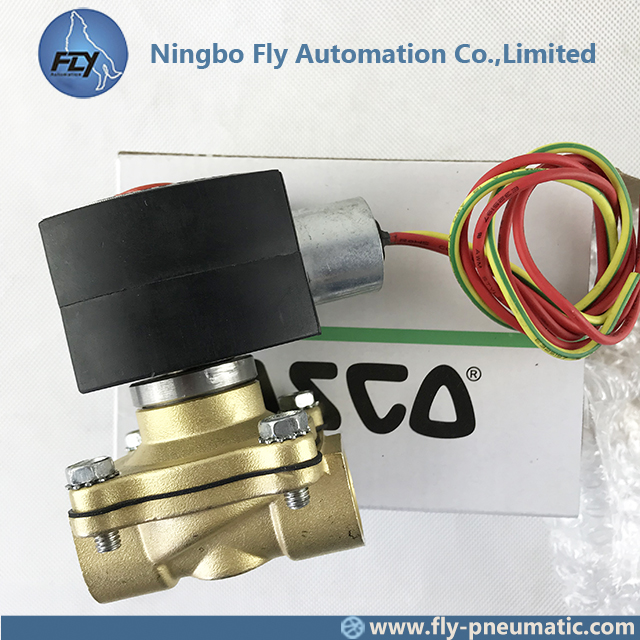

4. Product show
5. Approvals
UL listed as indicated. CSA certified. RedHat II meets applicable CE directives. Refer to Engineering Section for details. ATEX/IECEx certified with prefix “EV” as listed. Refer to Optional Features Electrical Section for details.
6. Features
• Wide range of pressure ratings, sizes, and resilient materials provide long service life and low internal leakage
• High flow valves for liquid, corrosive, and air/inert gas service
• Industrial applications include: - Car wash - Laundry equipment - Air compressors - Industrial water control - Pumps
7. Solenoid Enclosures
Standard: RedHat II - Watertight, Types 1, 2, 3, 3S, 4, and 4X; RedHat - Type I. Optional: RedHat II - Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9; Red-Hat - Explosionproof and Watertight, Types 3, 4, 4X, 7, and 9. (To order, add prefix “EF” to catalog number, except Catalog Numbers 8210B057, 8210B058, and 8210B059, which are not available with Explosionproof enclosures.) See Optional Features Section for other available options.
8. Nominal Ambient Temp. Ranges
RedHat II/RedHat AC: 32˚F to 125˚F (0˚C to 52˚C) RedHat II DC: 32˚F to 104˚F (0˚C to 40˚C) RedHat DC: 32˚F to 77˚F (0˚C to 25˚C) (104˚F/40˚C occasionally) 8210G227 AC: 32˚F to 130˚F (0˚C to 54˚C) DC: 32˚F to 90˚F (0˚C to 32˚C) Refer to Engineering Section for details.
9. Electrical
10. Construction
