8320G200 EF8320G200 ASCO 8320 series 1/4 inch Stainless Steel Body Direct Acting General Service Solenoid Valve

1. Port size: 1/4 inch
2. Material: Stainless Steel Body

Quantity:
  • 8320G200 EF8320G200
  • ASCO

1. Product Name: 8320G200 EF8320G200 ASCO 8320 series 1/4 inch Stainless Steel Body Direct Acting General Service Solenoid Valve

2. After-sale service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.


3. Drawing

Drawing

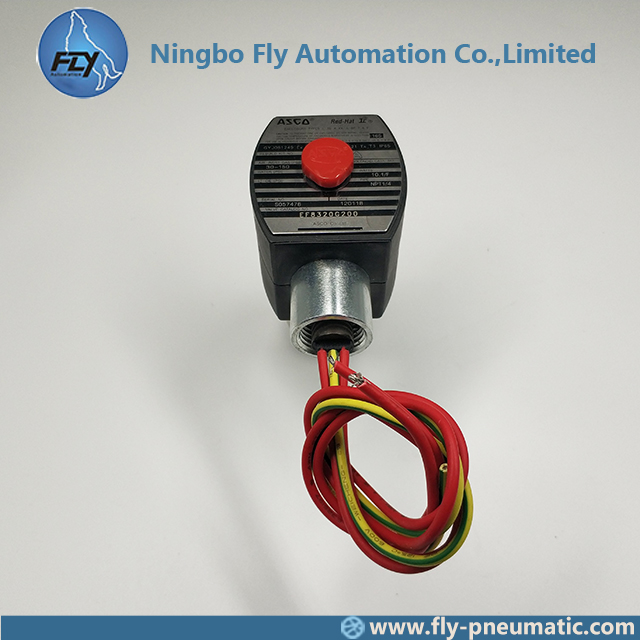

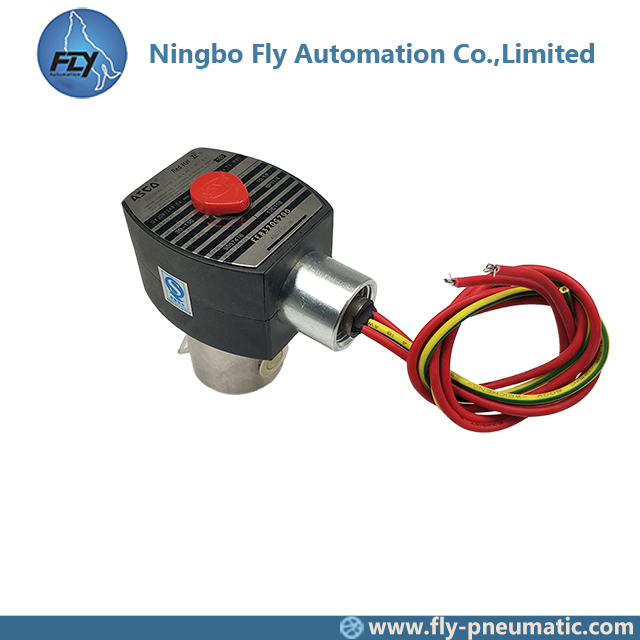

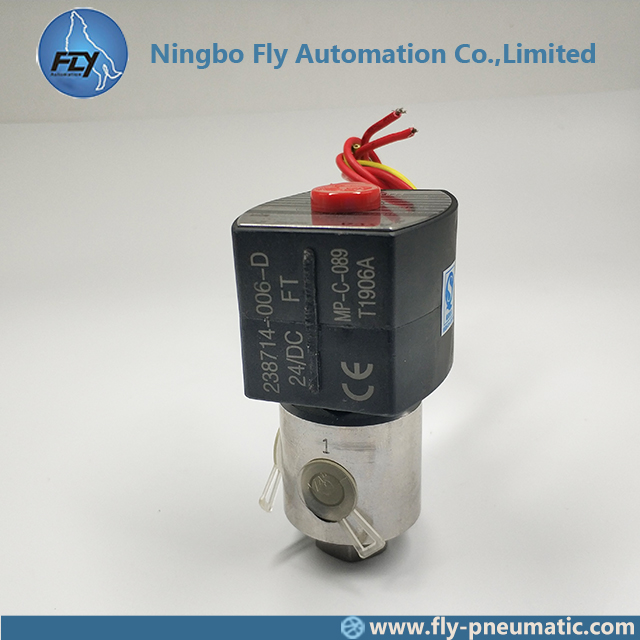

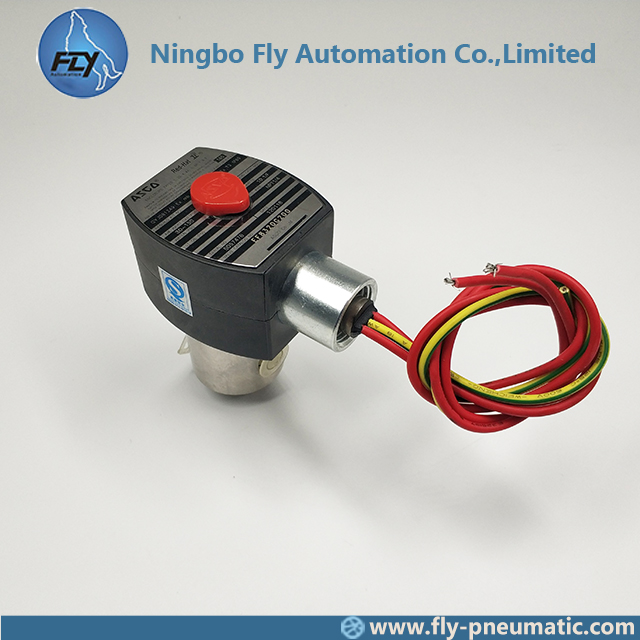

4. Product show

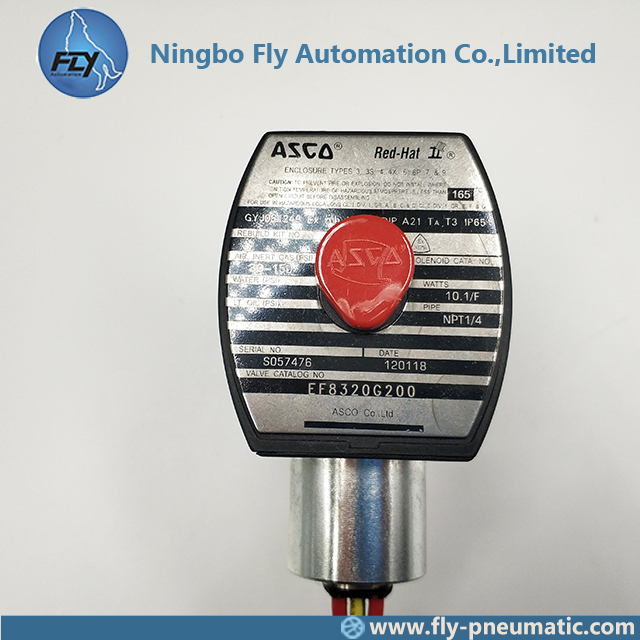

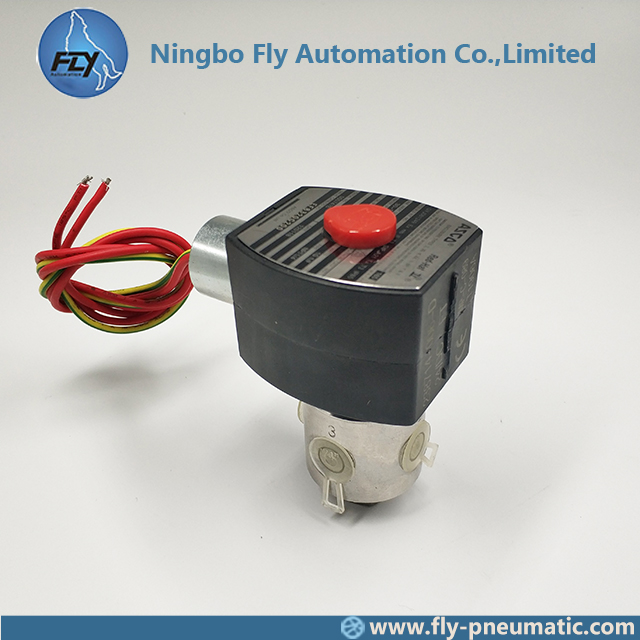

IMG_20191029_170715IMG_20191029_170746


5. Electrical

Electrical


6. Construction

Construction


7. Features

All NPT connections are in the valve body to allow in-line piping

No Minimum Operating Pressure Differential required

Broadest range of applications

Mountable in any position


8. Solenoid Enclosures

Standard: Watertight, Types 1, 2, 3, 3S, 4, and 4X.

Optional: Explosionproof and Watertight, Types 3, 3S, 4, 4X, 6, 6P, 7, and 9. (To order, add prefix “EF” to the catalog number.)

See Optional Features Section for other available options.


9. Nominal Ambient Temp. Ranges

AC: 32°F to 125°F (0°C to 52°C)

DC: 32°F to 104°F (0°C to 40°C)

Note: Some stainless steel constructions are rated -40°F (-40°C). See note √ in specifications table.

Refer to Engineering Section for details.


10. Approvals

CSA certified. UL listed General Purpose Valves.

Meets applicable CE directives.

SIL 3 capable per IEC 61508 on normally closed const. Third party certification provided by EXIDA.

Refer to Engineering Section for details.

ATEX/IECEx certified with prefix “EV” as listed.

Refer to Optional Features Electrical Section for details.
