8551A001 EF8551A001 ASCO 8551 series 1/4" Aluminum Body Direct Mount Inline Spool Valves

1. Port size: 1/4 inch
2. Material: Aluminum Body

Quantity:
  • 8551A001 EF8551A001
  • ASCO

1. Product Name: 8551A001 EF8551A001 ASCO 8551 series 1/4" Aluminum Body Direct Mount Inline Spool Valves

2. After-sale service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

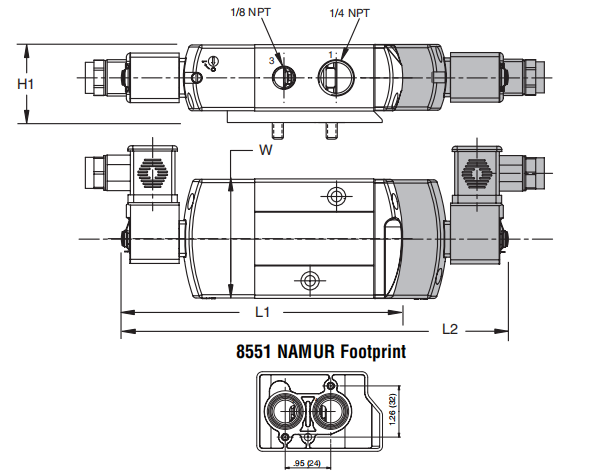

3. Drawing

Drawing

Series 8551 inch(mm)
NPT 1/4
L1 5.47(139)
L2 7.56(192)
H1 1.3(33)
W 1.77(45)

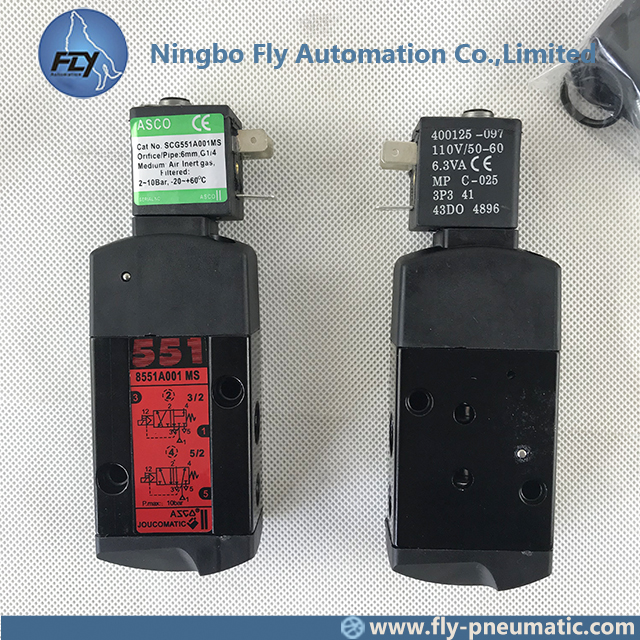

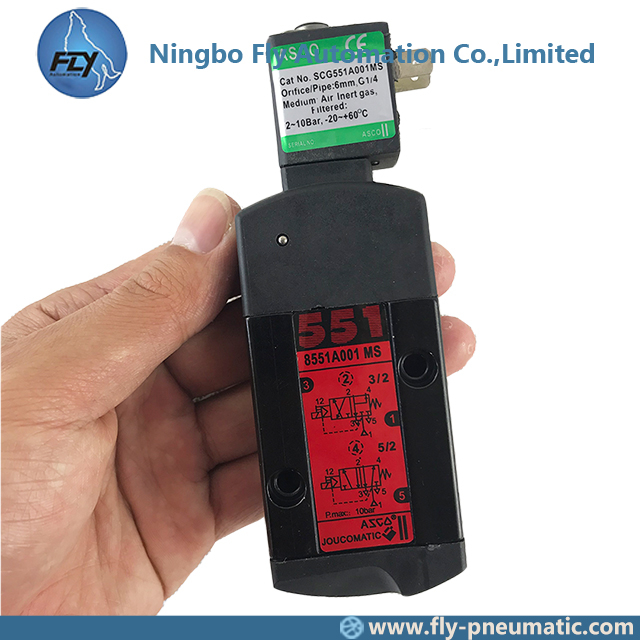

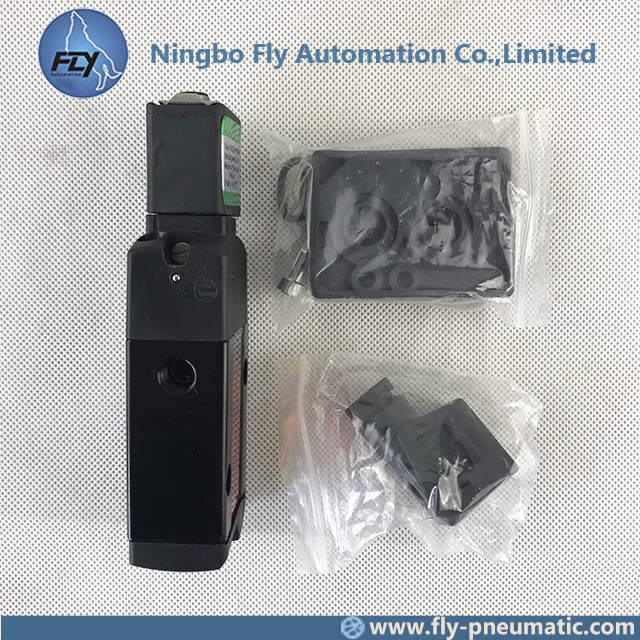

4. Product show

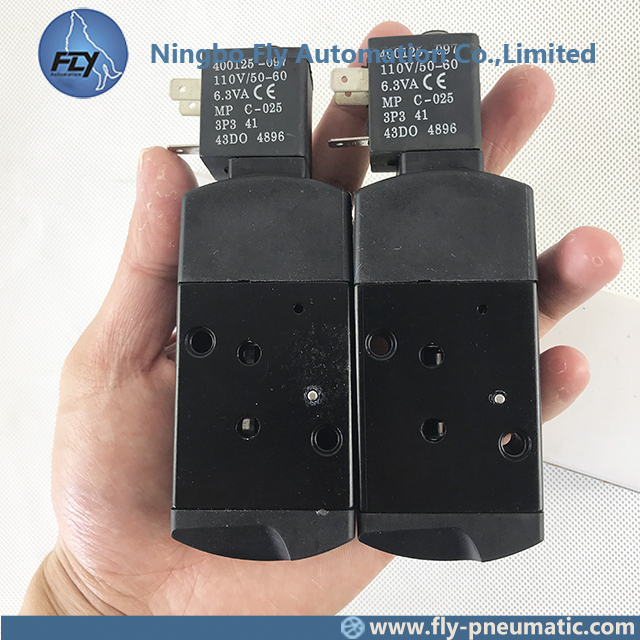

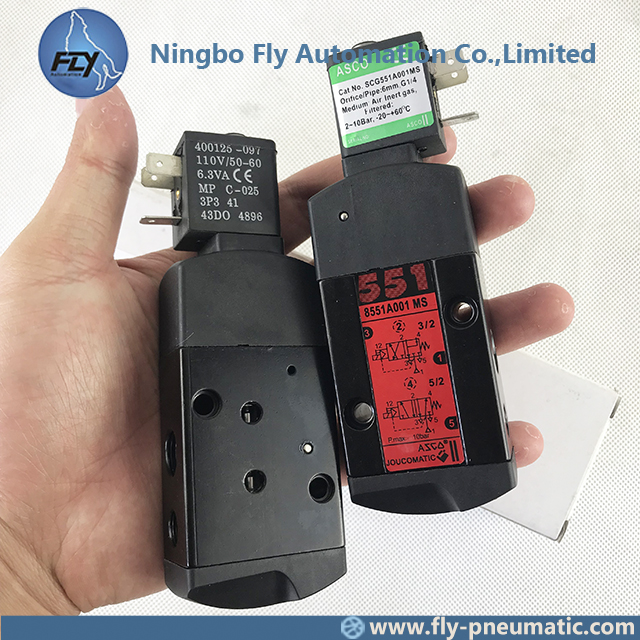

IMG_3364IMG_3365


5. Features

• Compact spool valve convertible from 3/2 to 5/2

• NAMUR mount construction

• Standard manual operator

• DIN, Watertight and Explosionproof solenoids available

• Single and dual solenoid constructions

• Mountable in any position

• Vents air from spring side of actuator to prevent

corrosion of actuator


6. Nominal Ambient Temp. Ranges

SC: AC/DC: 5˚F to +140˚F (-15˚C to 60˚C)

EF: AC: 5˚F to +104˚F (-15˚C to 40˚C)

DC: 5˚F to +77˚F (-15˚C to 25˚C)

WT: AC: 5˚F to +140˚F (-15˚C to 60˚C)

DC: 5˚F to +77˚F (-15˚C to 25˚C)

Note: For temperatures below 32˚F (0˚C) moisture-free

air must be used.

Refer to Engineering Section for details.


7. Approvals

SC (2.5W and 3W only) UL recognized component, CSA certified. (Series 8551 only)

WT: UL listed, CSA certified. (Series 8551 only)

EF: UL and CSA listed solenoid.

Meets applicable CE directives.

SIL 3 capable per IEC 61508 on normally closed single solenoid. Third party certification provided by EXIDA.

Refer to Engineering Section for details.


8. Solenoid Enclosures

Standard: - Prefix

SC = IP65 type DIN (open frame) per 46244

WT = Combination General Purpose and Watertight Types 1, 2, 3, 3S, 4, and 4X

EF = Combination Explosionproof and Watertight Types 3, 3S, 4, 4X, 6, 5P, 7, 9

Class I, Div. 1 (Groups A - D) and Class II, Div. 1 Type 9 (Groups E-G)

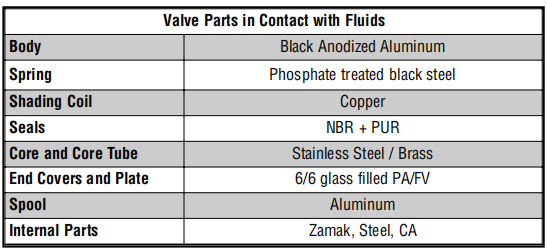

9. Construction

Construction

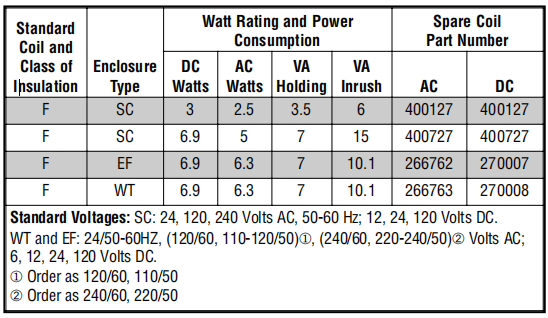

10. Electrical

Electrical
