AC2000
Airtac
1. Product name: AC2000 Airtac automatic air control AC series unit 1/4" precision automatic Filter regulator lubricator
2. Drawing
3. Specification
| Model | AC1500 | AC2000 | BC2000 | BC3000 | BC4000 | |
| Fluid | Air | |||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" | |
| Filtering grade | 40μm or 5 μm | |||||

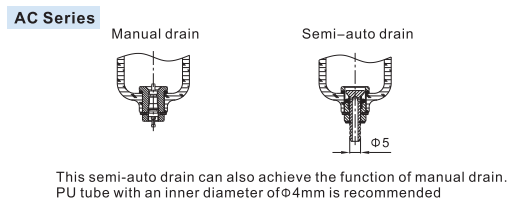

| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | |||||
| Max. pressure | 1.0MPa(145Psi) | |||||
| Proof pressure | 1.5MPa(215Psi) | |||||
| Temperature range | ﹣5~70℃(unfreeze) | |||||
| Capacity of drain bowl | 15CC | 60CC | ||||
| Capacity of oil bowl | 25CC | 90CC | ||||
| Recommend lubricant | ISO VG 32 or equivalent | |||||
| Weight | 700g | 900g | ||||
| Constitute | Filter | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Regulator | AR1500 | AR2000 | BR2000 | BR3000 | BR4000 | |
| Lubricator | AL1500 | AL2000 | BL2000 | BL3000 | BL4000 | |

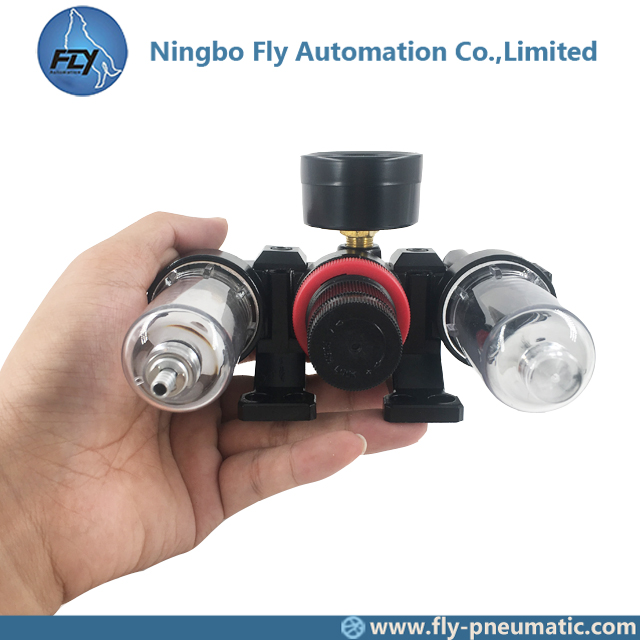

4. Product show
5. Serves time
0:00 - 23:59
From Monday to Sunday
6. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
7. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high.4.The quantity of oil dripping can be directly observed through transparent check-dome.
5. In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0. 4MPa).
8. Order code
9. Inner structure
| No. | Item | No. | Item |
| 1 | AF, BF Series filter | 5 | A, B Series fix kit |
| 2 | A, B Series gasket | 6 | Screw |
| 3 | A, B Series bracket | 7 | AL, BL Series lubricator |
| 4 | AR, BR Series regulator |
