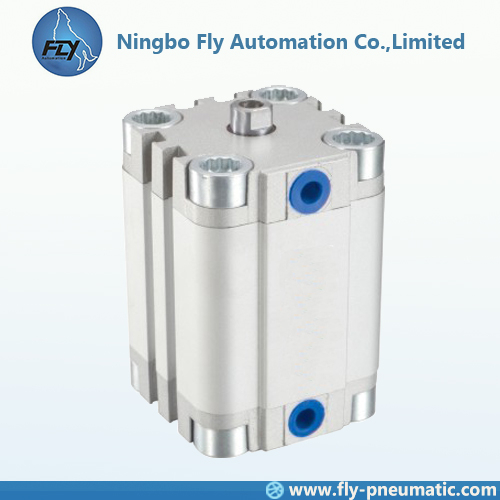

ADVU-32-50-A-P-A Festo ADVU series Compact cylinder

1. ADVU series cylinders has many different types according to the bore and stroke.
2. If you need some other type, pleae contact freely.

Quantity:
  • ADVU-32-50-A-P-A
  • Festo
  • 0046
  • Aluminium
  • 40mm
  • 125mm
  • 0.1~0.9 Mpa
  • -10~70℃
  • 1/8"
1. Product Name: ADVU-32-50-A-P-A Festo ADVU series Compact cylinder

2. Order Code

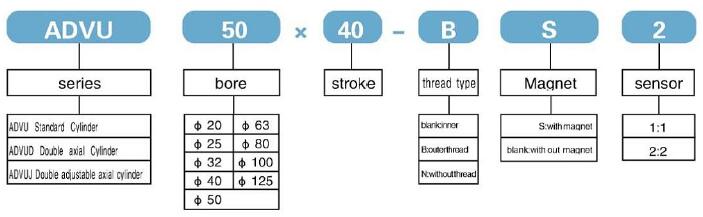

Order code
3. Specification

Model 20 25 32 40 50 63 80 100 125
Motion Double acting
Series ADVU, ADVUB, ADVUD, ADVUJ
Fluid Air
Operating pressure 0.1~0.9 Mpa
Operating speed 50~500 mm/sec
Ambient temperature -10~70℃
Port size M5 1/8" 1/4" 3/8"

4. Character:
1. Has ultra thin designs, light weight, occupies smaller space than traditional cylinder.
2. Easy maintenance and disassembly.
3. Inner and outer thread design in piston ends which can adapts to all circustances.
4. Non-lubrication design, may atttached with sensor.
5. Inner structure and material
Inner structure drawing
1 Piston rod 7 Tube
2 Compages seal 8 C-ring
3 Oiled bearing 9 Magnet ring
4 Front cover 10 Guard seals
5 Crashworthyly washer 11 Rear cover
6 O-ring 12 End screw
6. Structure and Dimension
1. ADVU series cylinder

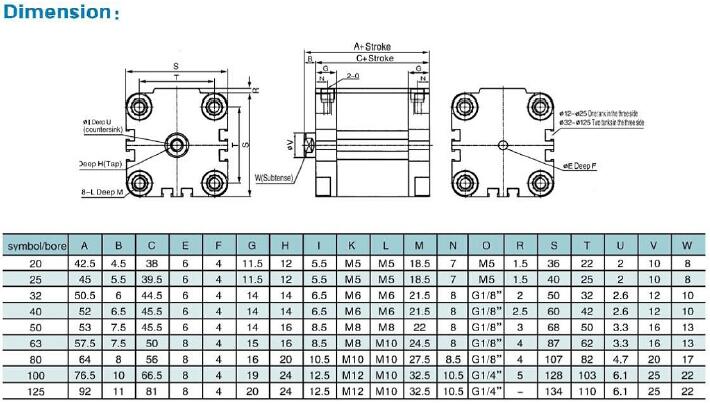

ADVU structure
2. ADVUB series cylinder

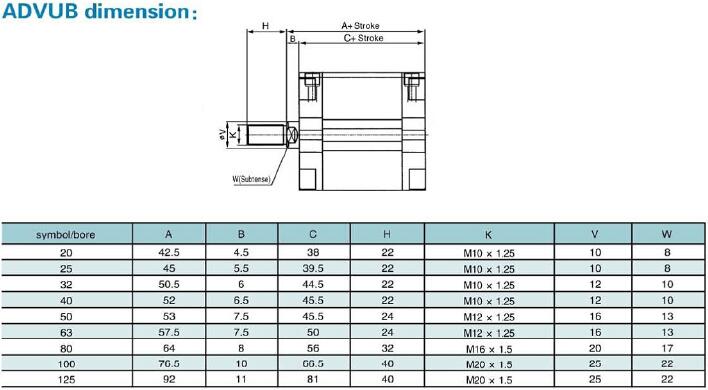

ADVUB structure
3. ADVUD series cylinders

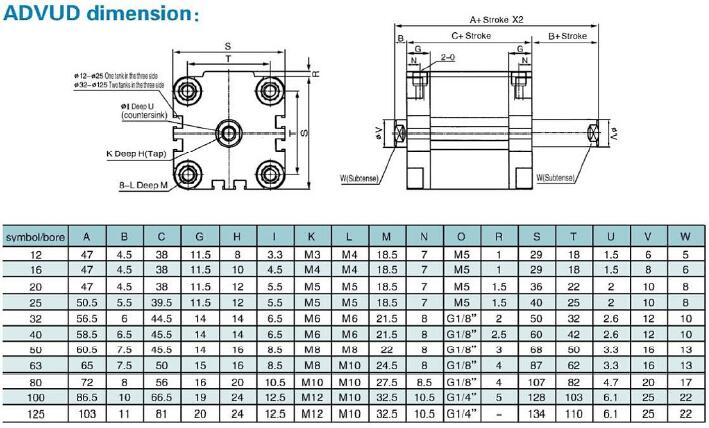

ADVUD structure
4. ADVUJ series cylinders

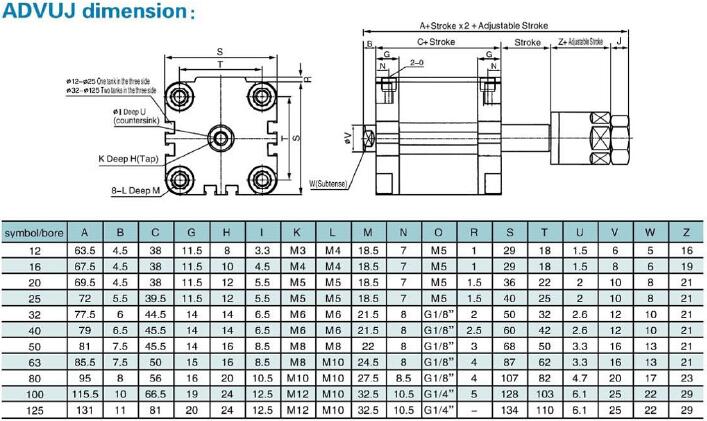

ADVUJ structure
7. Installation method
爆炸图
8. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
9. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
10. After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
