AE1475G020 AE14750G225 Dust Collector Valves Autel 3 inches Aluminium Pulse Solenoid Valve

1. Product name: AE1475G020 AE1475G225 Dust Collector Valves 2.5 Aluminium Pulse Solenoid Valve

2. Order code

3. General specification

Static Operation: Normally closed

Temperature: -20 °C +100 °C

Max Pressure: 8 Bar

Connection: Threaded

Material: Die cast aluminium

Pilot: Brass

Fluid: Filtered air not lubricated

4. General Description

The Threaded Connection series is a range of  electrovalves used for cleaning filter elements in air  filtration system. The characteristic of this model is  the female threaded connection (both in output and  input). The quick opening with a great volume of air  allows an high jet in a short time and a reduced air  consumption. All That is achieved from a deep  studying of internal geometrical characteristics  and from a technological research on  diaphragm. This guarantees rapid openingclosing and a working for over a million of shots.

5. Electric specification

Connector: Pg9 IP65

Conn.Insulation class: C-VDE 0110

Connector specification: Din 43650 – IS0 4400

Voltages: 230-150-24 V / 50-60 HZ AC  24 V DC

Power Absorption: 17 VA AC / 17 W DC

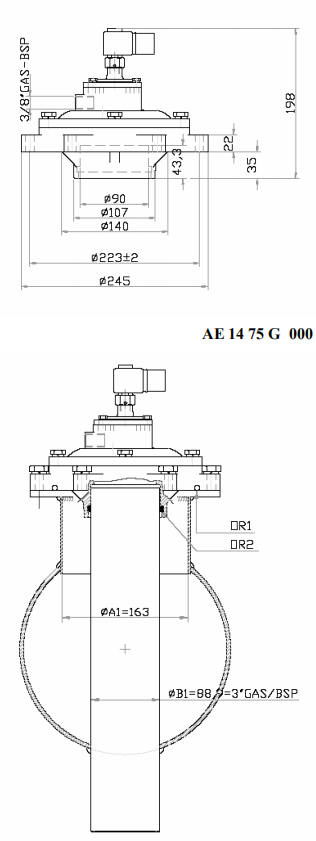

6. Drawing

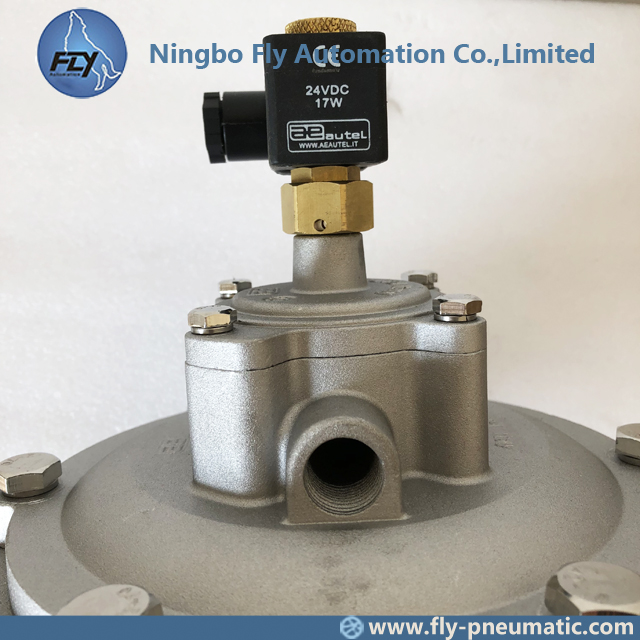

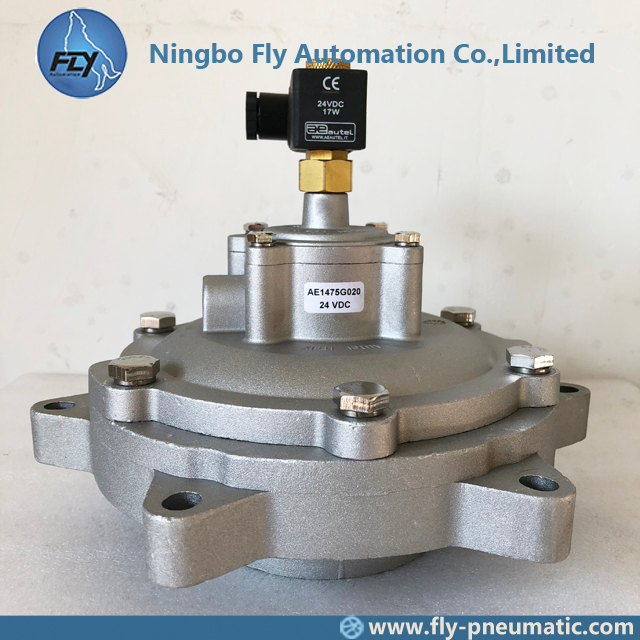

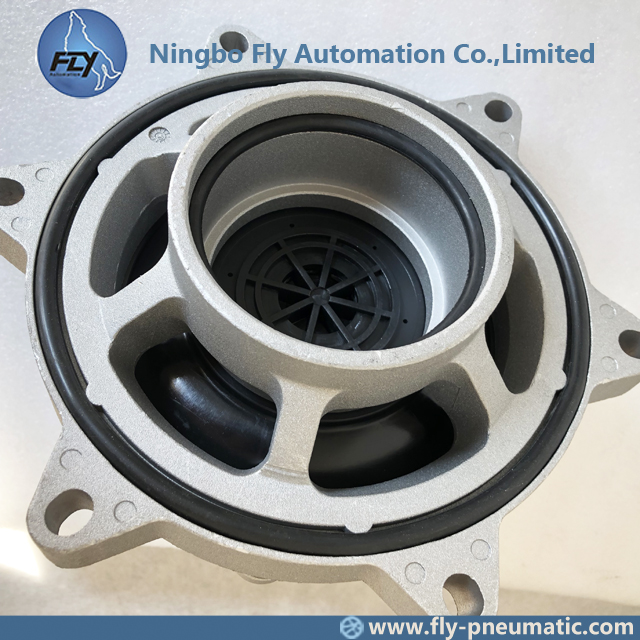

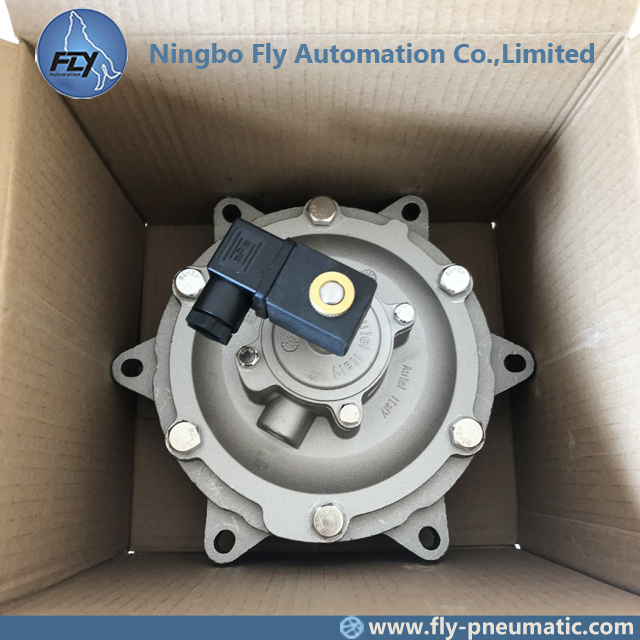

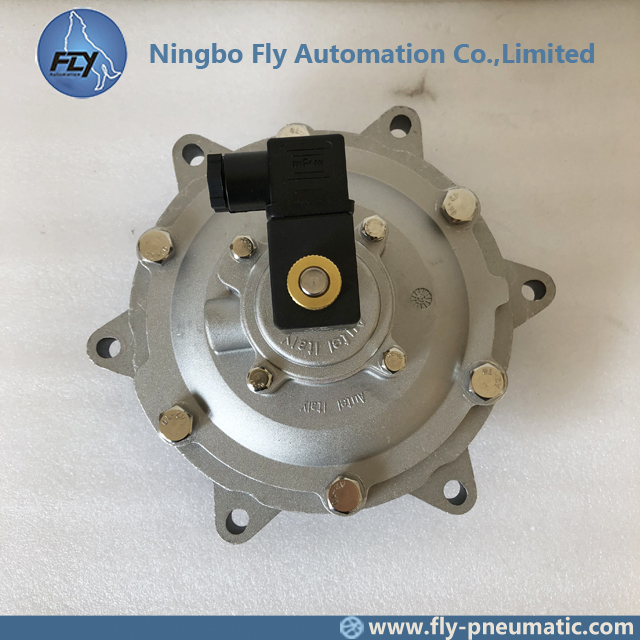

7. Product show
