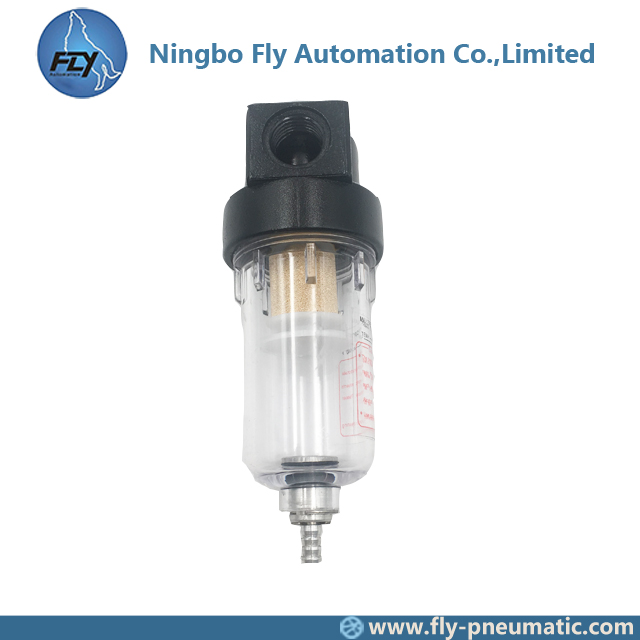

1. Product name: AF2000 1/4" Airtac Air source treatment Preparation control unit Pneumatic Components Filter
2. Product feature
AF Series
1. The structure is delicate and compact.
2. The pressure loss is low and the efficiency of water separating is high;
3. The filter precision includes 5 u m and 40 u m(optional);
BF Series
1. The pressure loss is low and the efficiency of water separating is high.
2. The bowl has high-strength plastic shields outside ,which is more safe and reliable to use.3. The filter precision includes 5 u m and 40 u m(optional).
3. Inner structure
| No. | Item | Material | No. | Item | Material | |
| 1 | Drain bowl O-ring | NBR | 8 | Drain pillar | POM | |
| 2 | Body | Aluminum alloy | 9 | Return spring | Stainless steel | |
| 3 | Filter element | 5μm | Makrolon fiber | 10 | Gasket | POM |
| 40μm | Agglomerated by bronze grain | 11 | Air guider | POM | ||
| 4 | Umbrella baffle | POM | 12 | Bowl guard switch | POM | |
| 5 | Drain bowl | PC | 13 | Bowl guard | PA6 | |
| 6 | Drain kit | POM | 14 | Drain seat O-ring | NBR | |
| 7 | Drain seat | POM | 15 | Clip | Spring steel | |
4. Order code
5. Specification
| Model | AF1500 | AF2000 | BF2000 | BF3000 | BF4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~1.0MPa(20~145Psi) Manual drain: 0~1.0Mpa(0~145Psi) | ||||
| Prof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | 5~70℃(unfreeze) | ||||
| Capacity of drain bowl | 15CC | 60CC | |||
| Weight | 140g | 330g | |||
6. Drawing
7. Serves time
0:00 - 23:59
From Monday to Sunday

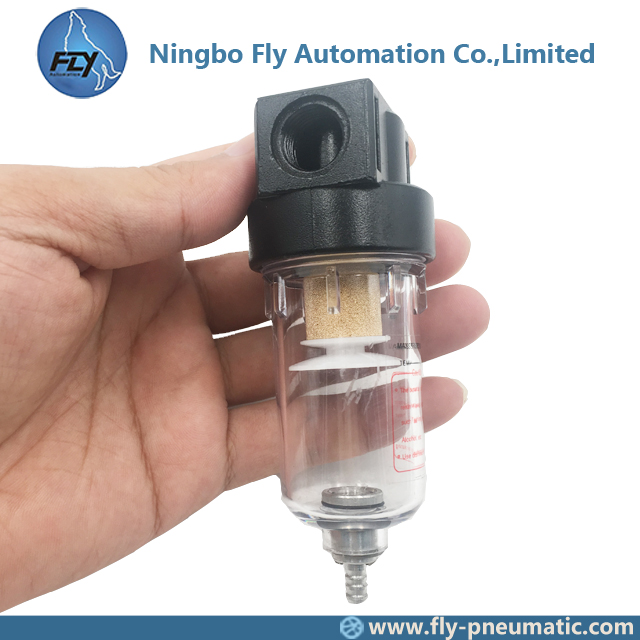

8. Product show
9. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
