AFR2000
Airtac
1. Product name: AFR2000 Airtac group control unit 1/4" Air source AFR series automatic precision Filter Regulator
2. Order code
3. Product feature
1. The structure is delicate and compact, which is convenient for installation and application.
2. The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.
3. The pressure loss is low and the efficiency of water separating is high;4. In addition to standard type, lower pressure type is optional(The highest adjustable pressure is 0.4MPa).

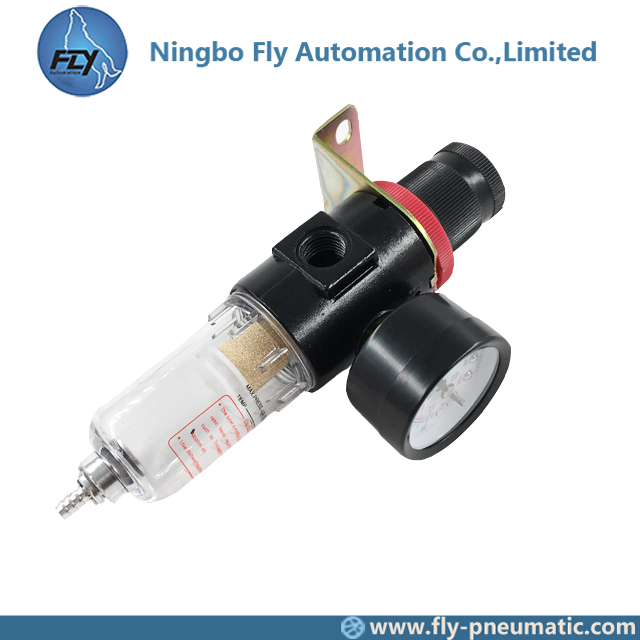

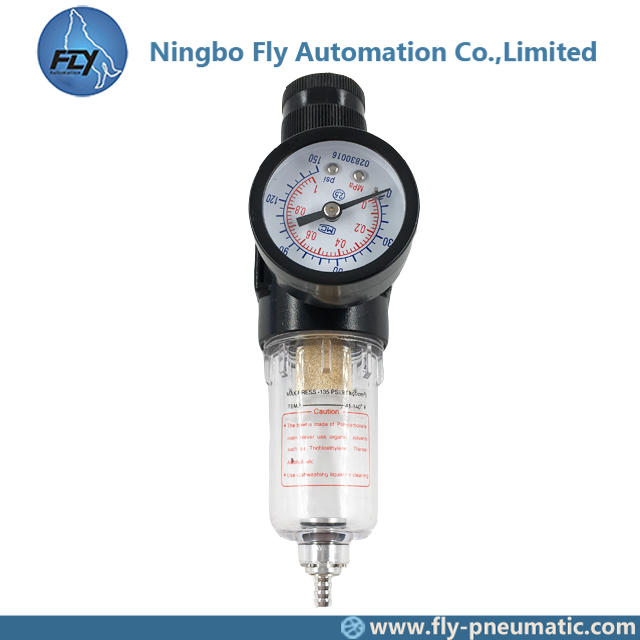

4. Product show
5. Other products
| Filter | Regulator | Lubricator | Filter Regulator | FR.L unit | F.R.L unit |
| AF1500 | AR1500 | AL1500 | AFR1500 | AFC1500 | AC1500 |
| AF2000 | AR2000 | AL2000 | AFR2000 | AFC2000 | AC2000 |
| BF2000 | BR2000 | BL2000 | BFR2000 | BFC2000 | BC2000 |
| BF3000 | BR3000 | BL3000 | BFR3000 | BFC3000 | BC3000 |
| BF4000 | BR4000 | BL4000 | BFR4000 | BFC4000 | BC4000 |
6. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.
7. Specification
| Model | AFR1500 | AFR2000 | BFR2000 | BFR3000 | BFR4000 |
| Fluid | Air | ||||
| Port size | 1/8" | 1/4" | 1/4" | 3/8" | 1/2" |
| Filtering grade | 40μm or 5 μm | ||||
| Pressure range | Semi-auto and automatic drain: 0.15~0.9MPa(20~130Psi) Manual drain: 0.05~0.9Mpa(7~130Psi) | ||||
| Max. pressure | 1.0MPa(145Psi) | ||||
| Proof pressure | 1.5MPa(215Psi) | ||||
| Temperature range | ﹣5~70℃(unfreeze) | ||||
| Capacity of oil bowl | 15CC | 60CC | |||
| Weight | 260g | 400g | |||
8. Inner structure
| No. | Item | Material | No. | Item | Material | |
| 1 | Push button | POM | 14 | Drain kit | POM | |
| 2 | Adjusting button | POM | 15 | Return spring | Stainless steel | |
| 3 | Adjusting nut | Steel | 16 | Drain seat | POM | |
| 4 | Adjusting seat | POM | 17 | Drain pillar | POM | |
| 5 | Adjust spring | SWC | 18 | Drain O-ring | NBR | |
| 6 | Flxed ring | POM | 19 | Filter element | 5μm | Makrolon fiber |
| 7 | Body | Aluminum alloy | 40μm | Agglomerated by bronze grain | ||
| 8 | Diaphragm | SUS304 & rubber | 20 | Return spring | Stainless steel | |
| 9 | Balance needle | POM | 21 | Drain bowl O-ring | NBR | |
| 10 | Needle gasket | Aluminum alloy & rubber | 22 | Needle O-ring | NBR | |
| 11 | Air guider | POM | 23 | Bowl guard switch | POM | |
| 12 | Umbrella baffle | POM | 24 | Gasket | POM | |
| 13 | Drain bowl | PC | 25 | Bowl guard | PA66 | |
| 26 | Clip | Spring steel | ||||
9. Drawing
