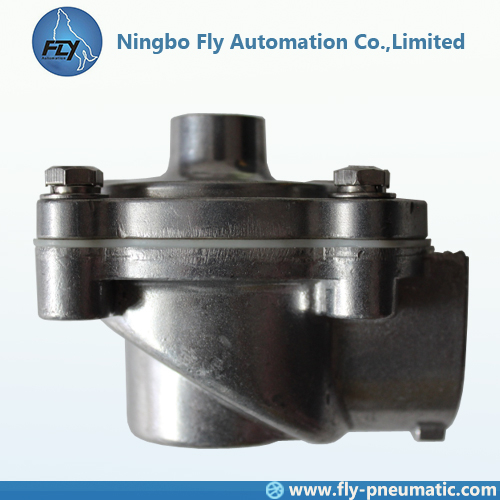

ASCO G353A042 1 inch Remote pilot Pulse jet valve Solenoid valve

1. Model: G353A042
2. Port size: 1"

Quantity:
  • G353A042
  • ASCO
  • 0093
  • Aluminium
  • 0.35~0.85 MPa
  • -10~70 ℃
  • C113444
  • NBR
  • 1 inch
1. Product Name: ASCO G353A042 1 inch Remote pilot Pulse jet valve Solenoid valve

2. Specificaton
pipe size remote pilot connection orifice size operating pressure differential (bar) catalogue number
G Φ mm min. max. standard
G - threaded pipe connection
 3/4  1/8 24 0.35 8.5 G353A041
1  1/8 27 0.35 8.5 G353A042
1 1/2  1/4 52 0.35 8.5 G353A045

3. Construction
Body: Aluminium
Spring: Stainless steel
Diaphragm: TPE (thermoplastic polyester elastomer) or
CR (chloroprene)
4. General
Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
Ambient temperature range -40/-20 to +85°C (TPE/CR)

5. Features
1. The diaphragm pulse valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to provide reliable and economical operation
2. The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications
3. Integral compression fittings for fast, easy, secure installation
4. Valves can be supplied according to ATEX Directive 94/9/EC for non-electrical equipment by using suffix GD
5. The components satisfy all relevant EC directives

6. OPTIONS
1. Valves can also be supplied with FPM (fluorelastomer) diaphragms and seal materials. Use the appropriate optional suffix 'V' for identification
2. Sequential controller for pilot solenoid valves
3. Pilot boxes containing 2 to 12 pilot solenoid valves
4. Pilot solenoid valves can be equipped with explosionproof solenoids for hazardous locations according to “ATEX” and national standards

7. Installation
1. The valves can be mounted in any position without affecting operation
2. Threaded pipe connection is: G = G (ISO 228/1) or compression fittings
3. When connecting piping or tubing to the G1/8 connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Φ 6 mm O.D. is recommended for all installations
4. For compression fitting types tightness is achieved by the compressed gasket on the blow tube
5. Other pipe threads are available on request
6. Installation/maintenance instructions are included with each valve
7. Spare parts kit and replacement coils are available

8. Dimension
structure

catalogue number A B C D E F G weight
G353A041 - G 1/8" 51 89 75 41 64 0.45
G353A042 - G 1/8" 51 89 75 41 64 0.40
G353A045 30 G 1/4" 71 136 136 71 98 1.00

9. Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower-quality product, and not raise objections.

10. Serves Time
0:00 - 23:59
From Monday to Sunday
