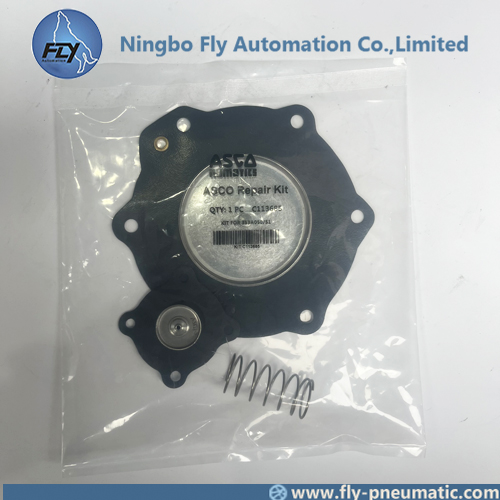

ASCO numatics C113685 Pulse valve SCG353A050 SCG353A051 Diaphragm Repair Kit

Share to:

ASCO numatics C113685 Pulse valve SCG353A050 SCG353A051 Diaphragm Repair Kit

1. Material: Nitrile/Buna or Viton
2. Port size: 2" or 2 1/2"
3. Suitable for: ASCO SCG353A050, SCG353A051, G353A048, G353A049

Availability:

Model:
C113685
Brand:
ASCO numatics

Product Description

1. Product Name: ASCO numatics C113685 Pulse valve SCG353A050 SCG353A051 Diaphragm Repair Kit

2. Order code: C113685

3. GENERAL

Differential pressure (PS): 0,35 - 8,5 bar [1 bar = 100kPa]

Ambient temperature range: -20 to +75 ℃ or 180℃
Material: Buna or Viton
Spanlife: 2 years or 1.5 million

4. ASCO diaphragms

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041, G353042	3/4", 1"	TPU / NBR
C113444	SCG353A043, SCG353A044	3/4", 1"	TPU / NBR
C113825	G353A045	1 1/2"	NBR / BUNA
C113826	G353A046	1 1/2"	NBR / BUNA
C113827	SCG353A047	1 1/2"	NBR / BUNA
C113685	SCG353A050, SCG353A051 G353A048, G353A049	2" , 2 1/2"	NBR / BUNA
C113686	SCG353A050, SCG353A051 G353A048, G353A049	2" , 2 1/2"	NBR / BUNA
C113928	SCEX353.060	3"	NBR / BUNA
NOTE: THE VITON MATERIAL IS ALSO AVAILABLE

5. Delivery

1. If the products we have in store, we will send it out ASAP after payment.

2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.

3. Also we can send by your delivery acount if you want.

4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.

6. After-sale Service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

7. Serves Time

0:00 - 23:59

From Monday to Sunday
