Airtac ISO15552 standard SI series cylinders SI 32-125 Double action

1: Product Name: Airtac ISO15552 standard SI series cylinders SI 32-125 Double action

2: Order code
3: Features

1. ISO15552 (original ISO6431) standard cylinder;

2. The pistion seal is composed of two Y-shape one-way seal structure, which has compensation funtion, long

service life and low start-up pressure;

3. The shaped aluminum pipe without tie rod has good corrosion esistance;

4. The buffer adjustment of cylinder is smooth and steady;

5. Cylinders and accessories for installable with several specifications are optional.

4: Specification

Bore size(mm)		32	40	50	63	80	100	125	160	200
Acting type		Double acting
Fluid		Air (to be filtered by 40 um filter element)
Mounting type	SI	Basic FA FB CA CB CR LB TC FTC TCM1 TCM2
	SID SIJ	Basic FA LB TC FTC TCM1 TCM2
Operating pressure		0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Proof pressure		1.5MPa(215psi)(15bar)
Temperature  °c		-20~80
Speed range mm/s		30~800						30~500
Cushion type		Variable cushion
Adjustable cushion stroke mm		27		30		36		40	50
Port size		1/8"	1/4"		3/8"		1/2"		3/4"

5: Installation
1. When load changes in the work, the cylinder with abundant output capacity shall selected.
2. Relative cylinder with high temperature resistance or corrosion shall be chose under the condition of high temperature or corrosion
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the
entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40um or below.
6. Nti-freezing measure shall be adopted under low temperature environment to prevent mois ture freezing.
7. The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to
the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8. The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and the
service life.
9. If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface.
Anti-dust caps shall be added in air inlet and outlet ports.

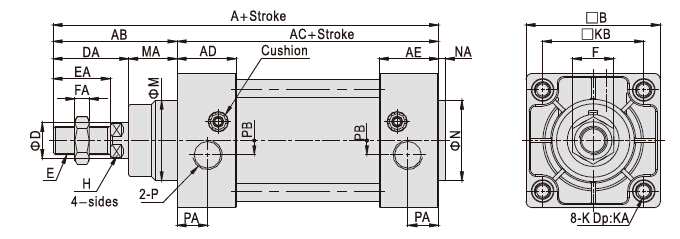

6: structure
