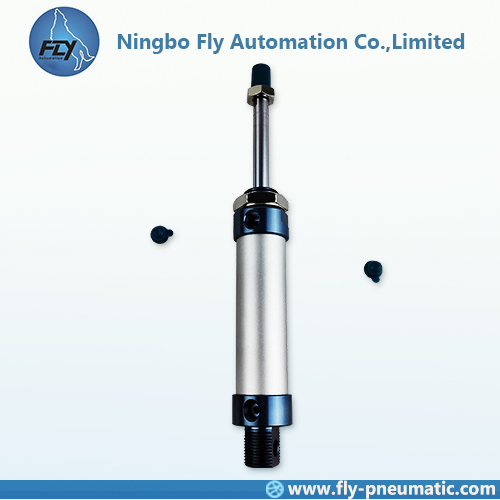

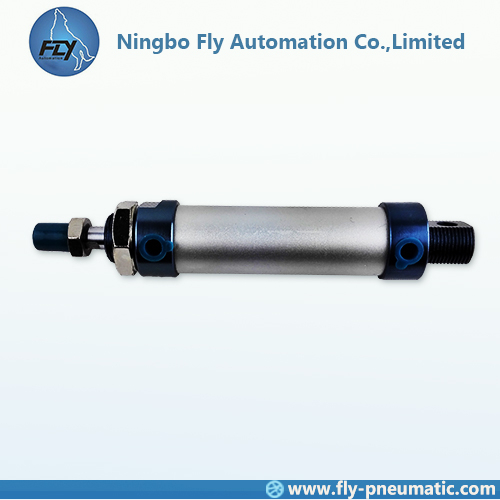

Airtac MAL series Aluminium barrel Mini cylinder MAL 25X50 Double acting

MAL series cylinder are all mini cylinders, operating pressure 0.1~10 bar, operating temperature -5~70℃.
  • MAL 25X50

  • Airtac

  • 0011

  • Aluminium

  • 32mm

  • 25mm

  • 0.1~1.0MPa

  • -5 to +70℃

1: Product Name:Airtac MAL series Aluminium barrel Mini cylinder MAL 25X50 Double acting

2: Order Code
order code3: Specification

Bore size(mm) 20 25 32 40
Acting type MSAL, MTAL Singel actiong
Others Double actiong
Fluid Air (to be filtered by 40 μm filter element)
Operating pressure Double acting 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single actiong 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature ℃ -20~70
Speed range mm/s Double actiong: 30~800  Single actiong: 50~800
Stroke tolerance 0~150(+1.0 0)>150(+1.0 0)
Cushion type Bumper
Port size 1/8" 1/4"
4: Product Features
1.Manufactured by our enterprise.
2.Front and back cover and cylinder tube are connected by threads.
3.Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.
4.Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide.
5.There are several modes of back cover, which makes the installation of cylinder more convenient.
6.There are cylinders and mounting accessories with several specifications for your choice.
5: Installation Usage
1. When load changes in the work, the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3. Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5. The medium used by cylinder shall be filtered to 40μm or below.
6. Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7. To avoid side load, otherwise, piston rod will be bent and deformed and damage the thread at the end of the rod. Single-acting type can not be added in return.
8. If the cylinder is dismantled and stored for a long time, please to conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
6: Structure and Dimension
1. MAL series cylinders
MAL dimension
2. MSAL series cylinders

MSAL dimension
7: Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
3. Also we can send by your delivery acount if you want.
4. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
8: After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
