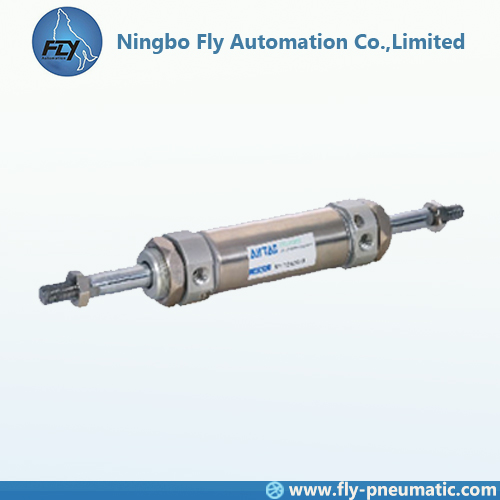

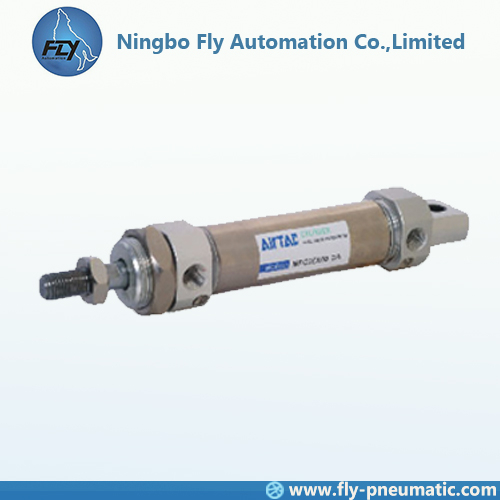

Airtac MF series Stainless steel Mini pneumatic cylinder

1. Airtac MF series pneumatic cylinder, according to the bore and stroke, can be divide into different types.
2. If you need some types special, you can ask directly.

Quantity:
  • MF series cylinder
  • Airtac
  • 0043
  • Double or Single acting
  • 1.5MPa
  • Can be chosen
  • Can be chosen
  • -20~80℃
1. Product Name: Airtac MF series Stainless steel Mini pneumatic cylinder

2. Order code
订购码
3. Specifications

Bore 20 25 32 40
Acting type Double acting, Double acting with cushion, Single acting push, Single acting pull
Fluid Air (to be filtered by 40 um filter element)
Operating pressure Double acting 0.1~1.0MPa(15~145psi)(1.0~10.0bar)
Single acting 0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Proof pressure 1.5MPa(215psi)(15bar)
Temperature ℃ -20~70
Speed range mm/s Double acting: 30~80  Single acting: 50~800
Stroke tolerance 0~150(+1.0~0)>150(+1.4~0)
Cushion MFC、MFCD、MFCJ series: Adjustable cushion  Other series: Bumper
Port size 1/8" 1/4"
4. Product Feature
1.JIS standard is implemented.
2.Piston adopts heterogeneous two way seal structure. It has compact size and has the function of oil reservation.
3.Front cover owns fixed anti-impact pad which can reduce the impact of direction-change of the cylinder.
4.There are several modes of back cover, which makes the installation of cylinder more convenient.
5. Front and back cover and stainless steel block adopt riveted rolling packed structure to form a reliable connection.
6.The cylinder body has stainless steel pipes with high precision to produce high strength and corrosion resistance.
7.With the same bore size and stroke, cylinders of MF series are shorter than ISO6432 standard cylinders.
8.There are cylinders and mounting accessories with several specifications for your choice.
5. Installation
1.When load changes in the work, the cylinder with abundant output capacity shall be ed.
2.Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.
3.Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.
4.Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.
5.The medium used by cylinder shall be filtered to 40μm or below.
6.Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
7.The cylinder shall be carried out test run without load before application. Prior to run, buffer shall be turned to the minimum and gradually released to avoid the damage on cylinder caused by excessive impact.
8.To avoid side load, otherwise, piston rod will be bent and deformed and damage the thread at the end of the rod. Single-acting type can not be added in return.
9.If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports. The front and back cover can not be dismantled, which shall be especially noticed.
6. Inner structure and material
MF series inner structure

NO. Item Material
1 Piston rod Carbon steel with 20 μm
chrome plated
2 Rod nut Carbon steel
3 Front cover packing NBR
4 Front cover nut Carbon steel
5 Bushion Wear resistant material
6 Front cover Aluminium alloy
7 Barrel SUS304
8 Bumper TPU
9 Piston Aluminium alloy
10 O-ring NBR
11 Psiton seal NBR
12 Wear ring Wear resistant material
13 Screw Carbon steel
14 Back cover Aluminium alloy
15 Magnet Sintered metal
(Neodyminum-iron-boron)
16 Magnet washer NBR
17 Magnet holder Aluminium alloy
7. Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.
8. Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. Also we can send by your delivery acount if you want.
3. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNL will be normal ways. If you require use of a courier, we can do it.
9. Serves Time
